TLV62569器件是一款同步降壓DC-DC轉換器，專門針對高效和緊湊型解決方案進行了優化。該器件集成的開關能夠提供高達2A的輸出電流。
在中等負載或重載條件下，該器件運行在脈寬調制（PWM）模式下，開關頻率為1.5MHz。在輕載情況下，該器件自動進入節能模式（PSM），從而在整個負載電流范圍內保持高效率。關斷時，流耗減少至2μA以下。

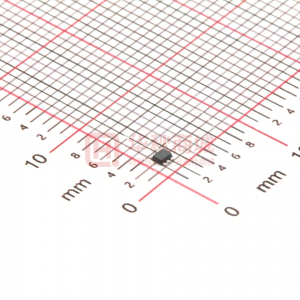

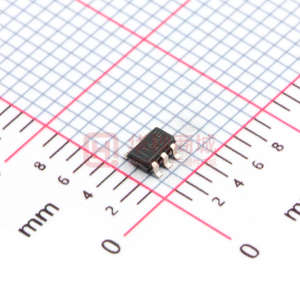

TLV62569的輸出電壓可通過一個外部電阻分壓器進行調節。內部軟啟動電路可限制啟動期間的浪涌電流。此外，還內置了諸如輸出過流保護，熱關斷保護和電源正常輸出等其他特性。該器件提供SOT23和SOT563兩種封裝。
所有商標均為其各自所有者的財產。
| ? |
|---|
| Vin (Min) (V) |
| Vin (Max) (V) |
| Vout (Min) (V) |
| Vout (Max) (V) |
| Iout (Max) (A) |
| Regulated Outputs (#) |
| Switching Frequency (Min) (kHz) |
| Switching Frequency (Max) (kHz) |
| Iq (Typ) (mA) |
| Features |
| Control Mode |
| Duty Cycle (Max) (%) |
| Operating Temperature Range (C) |
| Rating |
| Package Group |
| ? |
| TLV62569 | TLV62568A | TLV62569A | TPS62085 | TPS62088 | TPS62136 | TPS62480 | TPS62801 | TPS62802 | TPS62806 | TPS62823 | TPS62825 | TPS62826 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.5 ? ? | 2.5 ? ? | 2.5 ? ? | 2.5 ? ? | 2.4 ? ? | 3 ? ? | 2.4 ? ? | 1.8 ? ? | 1.8 ? ? | 1.8 ? ? | 2.4 ? ? | 2.4 ? ? | 2.4 ? ? |
| 5.5 ? ? | 5.5 ? ? | 5.5 ? ? | 6 ? ? | 5.5 ? ? | 17 ? ? | 5.5 ? ? | 5.5 ? ? | 5.5 ? ? | 5.5 ? ? | 5.5 ? ? | 5.5 ? ? | 5.5 ? ? |
| 0.6 ? ? | 0.6 ? ? | 0.6 ? ? | 0.8 ? ? | 0.6 ? ? | 0.8 ? ? | 0.6 ? ? | 0.8 ? ? | 1.8 ? ? | 0.4 ? ? | 0.6 ? ? | 0.6 ? ? | 0.6 ? ? |
| 5.5 ? ? | 5.5 ? ? | 5.5 ? ? | 6 ? ? | 4 ? ? | 12 ? ? | 5.5 ? ? | 1.55 ? ? | 3.3 ? ? | 0.775 ? ? | 4 ? ? | 4 ? ? | 4 ? ? |
| 2 ? ? | 1 ? ? | 2 ? ? | 3 ? ? | 3 ? ? | 4 ? ? | 6 ? ? | 1 ? ? | 1 ? ? | 0.6 ? ? | 3 ? ? | 2 ? ? | 3 ? ? |
| 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? |
| 1500 ? ? | 1500 ? ? | 1500 ? ? | 2400 ? ? | 4000 ? ? | 1000 ? ? | 2000 ? ? | 4000 ? ? | 4000 ? ? | 1500 ? ? | 2200 ? ? | 2200 ? ? | 2200 ? ? |
| 1500 ? ? | 1500 ? ? | 1500 ? ? | 2400 ? ? | 4000 ? ? | 1000 ? ? | 2500 ? ? | 4000 ? ? | 4000 ? ? | 1500 ? ? | 2200 ? ? | 2200 ? ? | 2200 ? ? |
| 0.035 ? ? | 0.035 ? ? | 0.035 ? ? | 0.017 ? ? | 0.004 ? ? | 0.018 ? ? | 0.023 ? ? | 0.0023 ? ? | 0.0023 ? ? | 0.0023 ? ? | 0.004 ? ? | 0.004 ? ? | 0.004 ? ? |
| Enable Light Load Efficiency Power Good Synchronous Rectification ? ? | Enable Forced Pulse Width Modulation (FPWM) Mode Power Good Synchronous Rectification ? ? | Enable Forced Pulse Width Modulation (FPWM) Mode Synchronous Rectification ? ? | Enable Light Load Efficiency Output Discharge Power Good Synchronous Rectification ? ? | Enable Light Load Efficiency Output Discharge Over Current Protection Power Good Synchronous Rectification ? ? | Dynamic Voltage Scaling Enable Forced Pulse Width Modulation (FPWM) Mode Light Load Efficiency Output Discharge Over Current Protection Power Good Pre-Bias Start-Up Synchronous Rectification Tracking UVLO Fixed VID: 2-bit ? ? | Dynamic Voltage Scaling Enable Forced Pulse Width Modulation (FPWM) Mode Light Load Efficiency Output Discharge Over Current Protection Phase Interleaving Power Good Pre-Bias Start-Up Synchronous Rectification Tracking UVLO Fixed Voltage Margining ? ? | Enable Forced Pulse Width Modulation (FPWM) Mode Light Load Efficiency Load Disconnect Output Discharge Over Current Protection Synchronous Rectification UVLO Fixed ? ? | Enable Forced Pulse Width Modulation (FPWM) Mode Light Load Efficiency Load Disconnect Output Discharge Over Current Protection Synchronous Rectification UVLO Fixed ? ? | Enable Forced Pulse Width Modulation (FPWM) Mode Light Load Efficiency Load Disconnect Output Discharge Over Current Protection Synchronous Rectification UVLO Fixed ? ? | Enable Light Load Efficiency Output Discharge Over Current Protection Power Good Pre-Bias Start-Up Synchronous Rectification ? ? | Enable Light Load Efficiency Output Discharge Over Current Protection Power Good Pre-Bias Start-Up Synchronous Rectification ? ? | Enable Light Load Efficiency Output Discharge Over Current Protection Power Good Pre-Bias Start-Up Synchronous Rectification UVLO Fixed ? ? |
| Current Mode ? ? | Current Mode ? ? | Current Mode ? ? | Constant on-time (COT) DCS-Control ? ? | Constant on-time (COT) DCS-Control ? ? | Constant on-time (COT) DCS-Control ? ? | Current Mode ? ? | Constant on-time (COT) DCS-Control ? ? | DCS-Control ? ? | DCS-Control ? ? | Constant on-time (COT) DCS-Control ? ? | Constant on-time (COT) DCS-Control ? ? | Constant on-time (COT) DCS-Control ? ? |
| 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? |
| -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? |
| Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? | Catalog ? ? |
| SOT-23 SOT-23-THIN SOT-5X3 ? ? | SOT-5X3 ? ? | SOT-5X3 ? ? | VSON-HR ? ? | DSBGA ? ? | VQFN-HR ? ? | VQFN-HR ? ? | DSBGA ? ? | DSBGA ? ? | DSBGA ? ? | VSON-HR ? ? | VSON-HR ? ? | VSON-HR ? ? |
