第二章 W55MH32 DHCP示例

本篇文章我們將詳細講解DHCP協議的基本信息、優勢特點、工作原理、應用場景，并通過實戰例程，為大家講解如何使用W55MH32動態獲取IP信息，幫助讀者更好地了解并運用這一協議。

有關W55MH32的初始化過程，請參考相關章節，這里將不再詳述。

1 DHCP協議簡介

DHCP（Dynamic Host Configuration Protocol）即動態主機配置協議，是一個應用層協議。它主要用于在 IP網絡中為客戶端自動分配 IP地址及其他相關網絡配置參數，如子網掩碼、默認網關、DNS服務器地址等。這種動態分配的方式大大簡化了網絡管理員的工作，并且能夠更有效地利用有限的 IP地址資源。

2 DHCP協議特點

便捷配置與管控：DHCP可自動分配IP地址、子網掩碼、網關、DNS等網絡參數，設備入網即自動獲取，用戶無需手動操作。管理員能通過服務器集中管理IP分配，網絡架構調整時，修改服務器設置，客戶端自動適配；靜態IP則要逐臺手動輸入、調整，流程繁瑣還易出錯。

靈活資源利用：DHCP動態分配IP，設備離線后地址回池再利用，契合公共場所臨時大量接入需求，提升地址利用率；還能按需靈活調配，為關鍵設備保留靜態IP，其余動態分配。靜態IP固定占用，閑置浪費資源，靈活性差。

高效維護與排障：DHCP自動分配，規避手動配置錯誤與IP地址沖突，服務器詳細記錄分配情況。網絡故障時，管理員依服務器日志鎖定故障設備排查；靜態IP手動配置易沖突，故障排查缺少有效記錄，難度大、耗時久。

適配移動與拓展：移動設備橫跨網絡時，DHCP讓其自動獲取IP配置，無需手動切換；網絡規模擴大、新增設備時，DHCP自動分配地址，助力快速擴容。靜態IP需提前規劃，易現地址不足、分配不合理問題，還增加設備移動操作難度。

3 DHCP工作原理

DHCP工作原理如圖所示：

從圖示中我們可以直觀明了地看出DHCP地工作原理，一般為四個階段：

發現階段：客戶端接入網絡時以廣播形式發送DHCP Discover報文（目的IP是255.255.255.255，源IP是0.0.0.0）尋找DHCP服務器，報文中含客戶端MAC地址。若服務器和客戶端不在同一子網，會通過中繼代理（如路由器）轉發。

提供階段：DHCP服務器收到Discover報文后，從IP地址池選一個未分配的IP地址，將其和子網掩碼、默認網關、DNS服務器地址等信息封裝進DHCP Offer報文，以廣播或單播方式發給客戶端，可能會有多個Offer報文。

請求階段：客戶端收到多個Offer后選擇一個，以廣播形式發送DHCP Request報文請求分配該IP地址等配置信息，且發送ARP請求檢查IP地址唯一性。

確認階段：服務器收到Request報文后，檢查IP地址是否可用。若可用，將以廣播或單播的形式發送DHCP Ack報文，客戶端收到后完成網絡配置正常上網。若不可用，發送DHCP Nak報文，客戶端收到后重新發起Discover流程。

4 DHCP協議報文

DHCP的報文格式如下：

DHCP報文各字段的說明如下表所示：

Discover報文實例：客戶端通過UDP廣播的方式發送DHCP發現報文，報文中包含了客戶端MAC地址、主機名和請求的IP地址等信息

|報文解析|
Message type: Boot Request (1)（op code為1，客戶端請求報文）
Hardware type: Ethernet (0x01)
Hardware address length: 6
Hops: 0
Transaction ID: 0xbf600589
Seconds elapsed: 0
Bootp flags: 0x0000 (Unicast)
Client IP address: 0.0.0.0
Your (client) IP address: 0.0.0.0
Next server IP address: 0.0.0.0
Relay agent IP address: 0.0.0.0
Client MAC address: HP_b1:37:11 (64:4e:d7:b1:37:11)
Client hardware address padding: 00000000000000000000
Server host name not given
Boot file name not given
Magic cookie: DHCP
Option: (53) DHCP Message Type (Discover)
Option: (61) Client identifier
Option: (50) Requested IP Address (192.168.1.115)
Option: (12) Host Name
Option: (60) Vendor class identifier
Option: (55) Parameter Request List
Option: (255) End
Padding: 0000000000000000

|報文原文|
01 01 06 00 bf 60
05 89 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 64 4e d7 b1 37 11 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 63 82 53 63 35 01 01 3d 07 01 64 4e d7 b1 37 11 32 04 c0 a8 01 73 0c 05 46 41 45 5f 33 3c 08 4d 53 46 54 20 35 2e 30 37 0e 01 03 06 0f 1f 21 2b 2c 2e 2f 77 79 f9 fc ff 00 00 00 00 00 00 00 00

Offer報文實例：DHCP服務器收到Discover報文后，從IP地址池選一個未分配的IP地址，將其和子網掩碼、默認網關等信息封裝進Offer報文以廣播或單播（這里為廣播的方式）方式發給客戶端

|報文解析|
Message type: Boot Reply (2)（op code為2，服務器響應報文）
Hardware type: Ethernet (0x01)
Hardware address length: 6
Hops: 0
Transaction ID: 0xbf600589
Seconds elapsed: 0
Bootp flags: 0x0000 (Unicast)
Client IP address: 0.0.0.0
Your (client) IP address: 192.168.1.115
Next server IP address: 0.0.0.0
Relay agent IP address: 0.0.0.0
Client MAC address: HP_b1:37:11 (64:4e:d7:b1:37:11)
Client hardware address padding: 00000000000000000000
Server host name not given
 Boot file name not given
Magic cookie: DHCP
Option: (53) DHCP Message Type (Offer)
Option: (54) DHCP Server Identifier (192.168.1.1)
 Option: (51) IP Address Lease Time
 Option: (6) Domain Name Server
Option: (1) Subnet Mask (255.255.255.0)
Option: (3) Router
Option: (255) End
|報文原文|
02 01 06 00 bf 60
05 89 00 00 00 00 00 00 00 00 c0 a8 01 73 00 00 00 00 00 00 00 00 64 4e d7 b1 37 11 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 63 82 53 63 35 01 02 36 04 c0 a8 01 01 33 04 00 00 1c 20 06 08 ca 60 86 21 ca 60 80 56 01 04 ff ff ff 00 03 04 c0 a8 01 01 ff

其他報文信息這里就不一一展示了，感興趣的朋友可以自行抓取查看。

5 DHCP應用場景

DHCP的應用場景通常集中在需要動態分配IP地址的局域網環境中。例如，在大型的辦公環境或者學校中，由于有大量的網絡設備需要連接到網絡，手動為每個設備分配和管理IP地址會非常繁瑣且容易出錯。使用DHCP可以集中管理IP地址的分配，提高網絡管理員的工作效率，減少錯誤的發生，且可以適應網絡變化。

6實現過程

接下來，我們一起來看看如何在W55MH32上實現DHCP動態獲取網絡地址信息。

注意：使用DHCP動態獲取IP時，必需將網絡結構體配置中dhcp的值改為NETINFO_DHCP，這樣才能運行DHCP模式。

步驟一：注冊DHCP定時器中斷到1s定時器中：

/**
* @brief   1ms timer IRQ Handler
* @param   none
* @return  none
*/
void TIM3_IRQHandler(void)
{
   static uint32_t tim3_1ms_count = 0;
   if (TIM_GetITStatus(TIM3, TIM_IT_Update) != RESET)
   {
       tim3_1ms_count++;
       if (tim3_1ms_count >= 1000)
       {
           DHCP_time_handler();
           tim3_1ms_count = 0;
       }
       TIM_ClearITPendingBit(TIM3, TIM_IT_Update);
   }
}

注冊DHCP定時器中斷主要為了DHCP超時處理。

在dhcp.h文件中，定義了DHCP超時時間、重試次數、端口號和主機名等內容：

/* Retry to processing DHCP */
#define MAX_DHCP_RETRY          2        ///< Maximum retry count
#define DHCP_WAIT_TIME          10       ///< Wait Time 10s

/* UDP port numbers for DHCP */
#define DHCP_SERVER_PORT       67       ///< DHCP server port number
#define DHCP_CLIENT_PORT         68       ///< DHCP client port number

#define MAGIC_COOKIE             0x63825363  ///< You should not modify it number.
#define DCHP_HOST_NAME           "WIZnet"

步驟二：啟用DHCP動態獲取：

首先需要將默認網絡地址信息結構體中的模式改為DHCP模式

/* network information */
wiz_NetInfo default_net_info = {
   .mac  = {0x00, 0x08, 0xdc, 0x12, 0x22, 0x12},
   .ip   = {192, 168, 1, 30},
   .gw   = {192, 168, 1, 1},
   .sn   = {255, 255, 255, 0},
   .dns  = {8, 8, 8, 8},
   .dhcp = NETINFO_DHCP
};

步驟三：DHCP獲取網絡地址信息

首先是在初始化完硬件和TOE之后調用network_init進行網絡地址信息配置

network_init(ethernet_buf, &default_net_info);

這個函數需要將DHCP處理用到的緩存數組以及默認網絡地址信息傳入，函數具體內容如下：

/**
* @brief   set network information
*
* First determine whether to use DHCP. If DHCP is used, first obtain the Internet Protocol Address through DHCP.
* When DHCP fails, use static IP to configure network information. If static IP is used, configure network information directly
*
* @param   sn: socketid
* @param   ethernet_buff:
* @param   net_info: network information struct
* @return  none
*/
void network_init(uint8_t *ethernet_buff, wiz_NetInfo *conf_info)
{
   int ret;
   wizchip_setnetinfo(conf_info); // Configuring Network Information
   if (conf_info->dhcp == NETINFO_DHCP)
   {
       ret = wiz_dhcp_process(0, ethernet_buff);
       if (ret == 0)
       {
           conf_info->dhcp = NETINFO_STATIC;
           wizchip_setnetinfo(conf_info);
       }
   }
   print_network_information();
}

在這個函數中，會先設置一遍網絡地址到W55MH32中，然后判斷模式是否為DHCP模式，如果為DHCP模式，則使用wiz_dhcp_process函數來執行DHCP進程，在通過DHCP方式成功獲取到網絡地址后更新到W55MH32中，最后將網絡地址信息打印出來。wiz_dhcp_process函數內容如下：

/**
* @brief DHCP process
* @param sn :socket number
* @param buffer :socket buffer
*/
static uint8_t wiz_dhcp_process(uint8_t sn, uint8_t *buffer)
{
   wiz_NetInfo conf_info;
   uint8_t     dhcp_run_flag = 1;
   uint8_t     dhcp_ok_flag  = 0;
   /* Registration DHCP_time_handler to 1 second timer */
   DHCP_init(sn, buffer);
   printf("DHCP runningrn");
   while (1)
   {
       switch (DHCP_run())  // Do the DHCP client
       {
       case DHCP_IP_LEASED: // DHCP Acquiring network information successfully
           if (dhcp_ok_flag == 0)
           {
               dhcp_ok_flag  = 1;
               dhcp_run_flag = 0;
           }
           break;
       case DHCP_FAILED:
           dhcp_run_flag = 0;
           break;
       }
       if (dhcp_run_flag == 0)
       {
           printf("DHCP %s!rn", dhcp_ok_flag ? "success" : "fail");
           DHCP_stop();
           if (dhcp_ok_flag)
           {
               getIPfromDHCP(conf_info.ip);
               getGWfromDHCP(conf_info.gw);
               getSNfromDHCP(conf_info.sn);
               getDNSfromDHCP(conf_info.dns);
               conf_info.dhcp = NETINFO_DHCP;
               getSHAR(conf_info.mac);
               wizchip_setnetinfo(&conf_info); // Update network information to network information obtained by DHCP
               return 1;
           }
           return 0;
       }
   }
}

在該函數體中，首先會調用DHCP_init函數進行初始化DHCP配置：

void DHCP_init(uint8_t s, uint8_t * buf)
{
   uint8_t zeroip[4] = {0,0,0,0};
   getSHAR(DHCP_CHADDR);
   if((DHCP_CHADDR[0] | DHCP_CHADDR[1]  | DHCP_CHADDR[2] | DHCP_CHADDR[3] | DHCP_CHADDR[4] | DHCP_CHADDR[5]) == 0x00)
   {
     // assigning temporary mac address, you should be set SHAR before call this function.
     DHCP_CHADDR[0] = 0x00;
     DHCP_CHADDR[1] = 0x08;
     DHCP_CHADDR[2] = 0xdc;
     DHCP_CHADDR[3] = 0x00;
     DHCP_CHADDR[4] = 0x00;
     DHCP_CHADDR[5] = 0x00;
     setSHAR(DHCP_CHADDR);
   }
 DHCP_SOCKET = s; // SOCK_DHCP
 pDHCPMSG = (RIP_MSG*)buf;
 DHCP_XID = 0x12345678;
 {
   DHCP_XID += DHCP_CHADDR[3];
   DHCP_XID += DHCP_CHADDR[4];
   DHCP_XID += DHCP_CHADDR[5];
   DHCP_XID += (DHCP_CHADDR[3] ^ DHCP_CHADDR[4] ^ DHCP_CHADDR[5]);
 }
 // WIZchip Netinfo Clear
 setSIPR(zeroip);
 setGAR(zeroip);
 reset_DHCP_timeout();
 dhcp_state = STATE_DHCP_INIT;
}

然后是在DHCP主循環中運行DHCP_run函數，它的主要作用是進行DHCP組包，發送發現、請求等報文，對服務器的提供、響應等內容進行解析以及超時處理，這里只需要根據DHCP_run函數的返回值進行相應處理即可。DHCP_run函數內容如下：

uint8_t DHCP_run(void)
{
 uint8_t  type;
 uint8_t  ret;
 if(dhcp_state == STATE_DHCP_STOP) return DHCP_STOPPED;
 if(getSn_SR(DHCP_SOCKET) != SOCK_UDP)
     socket(DHCP_SOCKET, Sn_MR_UDP, DHCP_CLIENT_PORT, 0x00);
 ret = DHCP_RUNNING;
 type = parseDHCPMSG();
 switch ( dhcp_state ) {
     case STATE_DHCP_INIT     :
         DHCP_allocated_ip[0] = 0;
         DHCP_allocated_ip[1] = 0;
         DHCP_allocated_ip[2] = 0;
         DHCP_allocated_ip[3] = 0;
       send_DHCP_DISCOVER();
       dhcp_state = STATE_DHCP_DISCOVER;
       break;
   case STATE_DHCP_DISCOVER :
     if (type == DHCP_OFFER){
#ifdef _DHCP_DEBUG_
       printf("> Receive DHCP_OFFERrn");
#endif
           DHCP_allocated_ip[0] = pDHCPMSG->yiaddr[0];
           DHCP_allocated_ip[1] = pDHCPMSG->yiaddr[1];
           DHCP_allocated_ip[2] = pDHCPMSG->yiaddr[2];
           DHCP_allocated_ip[3] = pDHCPMSG->yiaddr[3];
       send_DHCP_REQUEST();
       dhcp_state = STATE_DHCP_REQUEST;
     } else ret = check_DHCP_timeout();
         break;
   case STATE_DHCP_REQUEST :
     if (type == DHCP_ACK) {
#ifdef _DHCP_DEBUG_
       printf("> Receive DHCP_ACKrn");
#endif
       if (check_DHCP_leasedIP()) {
         // Network info assignment from DHCP
         dhcp_ip_assign();
         reset_DHCP_timeout();
         dhcp_state = STATE_DHCP_LEASED;
       } else {
         // IP address conflict occurred
         reset_DHCP_timeout();
         dhcp_ip_conflict();
           dhcp_state = STATE_DHCP_INIT;
       }
     } else if (type == DHCP_NAK) {
#ifdef _DHCP_DEBUG_
       printf("> Receive DHCP_NACKrn");
#endif
       reset_DHCP_timeout();
       dhcp_state = STATE_DHCP_DISCOVER;
     } else ret = check_DHCP_timeout();
   break;
   case STATE_DHCP_LEASED :
       ret = DHCP_IP_LEASED;
     if ((dhcp_lease_time != INFINITE_LEASETIME) && ((dhcp_lease_time/2) < dhcp_tick_1s)) {

#ifdef _DHCP_DEBUG_
         printf("?> Maintains the IP address rn");
#endif
       type = 0;
       OLD_allocated_ip[0] = DHCP_allocated_ip[0];
       OLD_allocated_ip[1] = DHCP_allocated_ip[1];
       OLD_allocated_ip[2] = DHCP_allocated_ip[2];
       OLD_allocated_ip[3] = DHCP_allocated_ip[3];

       DHCP_XID++;
       send_DHCP_REQUEST();
       reset_DHCP_timeout();
       dhcp_state = STATE_DHCP_REREQUEST;
     }
   break;
   case STATE_DHCP_REREQUEST :
       ret = DHCP_IP_LEASED;
     if (type == DHCP_ACK) {
       dhcp_retry_count = 0;
       if (OLD_allocated_ip[0] != DHCP_allocated_ip[0] ||
           OLD_allocated_ip[1] != DHCP_allocated_ip[1] ||
           OLD_allocated_ip[2] != DHCP_allocated_ip[2] ||
           OLD_allocated_ip[3] != DHCP_allocated_ip[3])
       {
         ret = DHCP_IP_CHANGED;
         dhcp_ip_update();
               #ifdef _DHCP_DEBUG_
                 printf(">IP changed.rn");
               #endif

       }
         #ifdef _DHCP_DEBUG_
           else printf(">IP is continued.rn");
         #endif
       reset_DHCP_timeout();
       dhcp_state = STATE_DHCP_LEASED;
     } else if (type == DHCP_NAK) {
#ifdef _DHCP_DEBUG_
       printf("> Receive DHCP_NACK, Failed to maintain iprn");
#endif
       reset_DHCP_timeout();
       dhcp_state = STATE_DHCP_DISCOVER;
     } else ret = check_DHCP_timeout();
       break;
   default :
       break;
 }
 return ret;
}

8運行結果

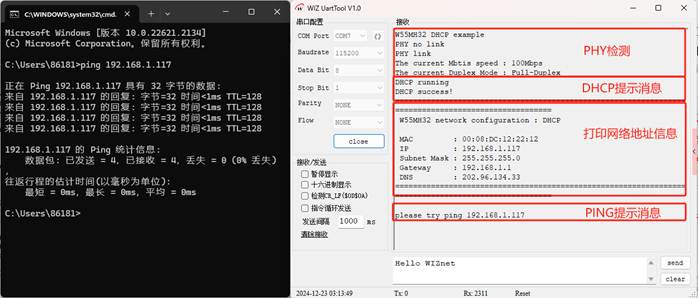

燒錄例程運行后，首先打印了PHY鏈路檢測的結果以及DHCP日志信息，然后打印了網絡地址信息，這里可以看到配置方式為DHCP，IP地址為192.168.1.117，最后是PING提示消息。

接著在PC端打開CMD，PING W55MH32的IP地址，可以正常PING通。

7總結

本文介紹 DHCP協議，包括其在 IP網絡自動分配參數的功能、便捷配置等特點、工作原理、報文格式和應用場景。通過 W55MH32實戰例程展示動態獲取網絡地址信息過程，含注冊定時器中斷、啟用模式和獲取信息等步驟，燒錄后可完成檢測與信息打印，PC端能 PING通設備。

下一篇文章將講解如何在 W55MH32芯片上實現 TCP客戶端模式，解析 TCP客戶端連接服務器進行回環測試的核心原理及應用，同時通過實戰例程講解具體實現步驟與要點，敬請期待！
