危險且缺乏保護的水下作業是潛水員死亡的主要原因；生物傳感器可提供早期預警和部分保護，從而在一定程度上減輕這一風險。然而，當前生物傳感器的復雜性和高成本限制了其廣泛應用，凸顯了對有效、成本效益高且多功能生理監測解決方案的迫切需求。本文，德克薩斯大學Deji Akinwande、馬薩諸塞大學Dmitry Kireev等在《ACS Applied Electronic Materials》期刊發表名為“Electrophysiological Sensing with Graphene Electronic Tattoos for Saline and Underwater Environments”的論文，研究開發了一種非侵入式防水石墨烯電生理傳感器，可在鹽水環境中檢測多種生理信號，從而克服現有水下監測技術的局限性。通過采用原子級薄的石墨烯界面和簡單的防水涂層方法，我們實現了在皮膚表面采集心電圖（ECG）、肌電圖（EMG）和皮膚電活動（EDA）信號。

此外，我們通過EDA信號準確評估了驚嚇事件，這對于評估潛水員壓力和預防事故至關重要。該防水石墨烯生物傳感器展現出卓越的電學性能，包括在10 kHz頻率下阻抗低至約2.4 kΩ·cm2、EMG信號信噪比超過21 dB，以及EDA信號響應速度高達0.125 μS/(s·cm2)，所有測試均在鹽水條件下進行。本研究為防水石墨烯電生理傳感器在鹽水環境中的巨大潛力提供了有力證據，為提升潛水員安全性和降低事故風險提供了解決方案。

2圖文導讀

圖1. Water-resistant GET (Graphene Electronic Tattoo) structure and functional diagram. (a) Schematic representation of the integrated structure of SCC-GET. (b) Close-up optical photograph of a single GET, and a GET connected to gold tape adhered to the forearm. The skin surface has been treated with a waterproof coating. (c) Schematic representation of a SCC-GET sensor, which is capable of detecting electrocardiogram (ECG), electromyogram (EMG), and electrodermal activity (EDA) signals in saline environments.

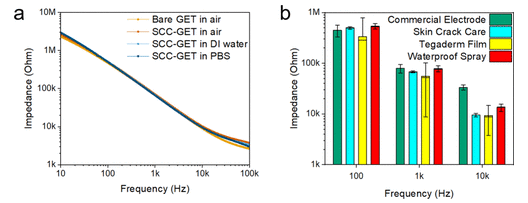

圖2. Comparative impedance spectra of GET under diverse coating conditions for water resistance performance. (a) Skin crack care (SCC) coated GET full spectrum impedance sweep for all test conditions. (b) The mean impedance of GET using different waterproofing methods (Tegaderm film-coated commercial electrodes, Tegaderm film-coated GET, Skin Crack Care (SCC) coated GET, and Waterproof spray-coated GET), under different test conditions (bare in air, coated in air, coated in DI water, and coated in PBS solution), measured at different frequencies (100 Hz, 1 kHz, and 10 kHz). The area of the commercial electrodes was normalized to match the surface area of the GET for comparative analysis.

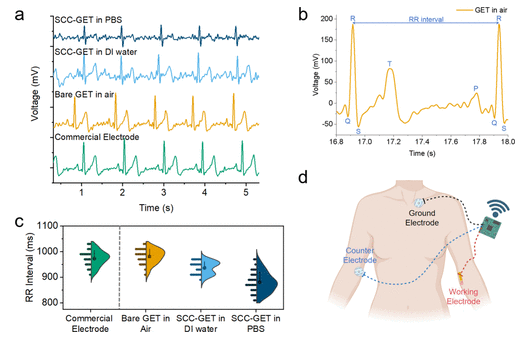

圖3. ECG signal recorded from SCC coated GET. (a) ECG signals measured in air from GET (light orange), under 30 cm of deionized (DI) water (light blue), under 30 cm of PBS solution (dark blue), and Ag/AgCl commercial electrodes (green) in air. (b) ECG signal measured by GET in air, capturing a complete cardiac cycle and marking the different phases within the cycle. (c) Violin plot of sinus rhythm R–R intervals (heart rate) calculated from ECG signals under different conditions. The width of the violin represents the data density, the center bar shows the interquartile range, and the dot within the bar marks the median. (d) Diagram of three-lead ECG signal measurement.

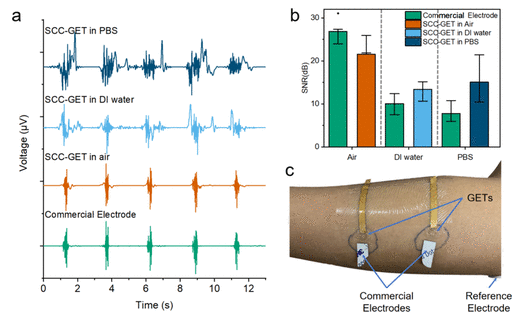

圖4. EMG signal recorded from SCC coated GET. (a) EMG signals measured simultaneously in air from SCC-GET (dark orange) and Ag/AgCl commercial electrodes (green). EMG signals from SCC-GET measured under 30 cm of deionized (DI) water (light blue) and under 30 cm of PBS solution (dark blue). (b) Signal-to-noise ratio for different measurement conditions (n= 12, 10 grabs, and 2 holds). The bars represent the mean values, with error bars indicating the standard deviation (mean ± SD). (c) Optical photograph of simultaneous EMG signal measurements using graphene electrodes and commercial electrodes (cut into 0.25 cm2), located on the subject’s forearm.

圖5. EDA signal recorded from SCC coated GET. (a) Schematic diagram of the working principle for EDA signal measurement. (b) EDA signals measured with SCC-GET in DI water, recorded while subjects watched three types of videos: meditative, serene, and terrifying. The green dashed line indicates where subjects stabilized their emotional fluctuations, while the green arrow highlights the specific moment. (c) EDA signals measured with SCC-GET in DI water, recorded while subjects watched a 10 min terrifying video. (d) Comparison of EDA signal peaks (using area-normalized conductance) while watching terrifying videos measured with SCC-GET under different conditions (DI water, PBS, air) and commercial electrodes (air only). Normalized by area (n= 9 for commercial metal button electrodes in air,n= 9 for bare GET in air,n= 7 for SCC-GET in air,n= 6 for SCC-GET in DI,n= 8 for SCC-GET in PBS). The box represents 25% and 75% with a mean; outliers are ±SD. (e) Comparison of EDA signals baselines (median of tonic component), using area-normalized conductance, measured with GET under different conditions and commercial electrodes in air.

3小結

研究推出了一種新型皮膚裂紋護理增強型防水石墨烯電子紋身（SCC-GET），展示了其在鹽水環境中各種生物電子應用中的有效性。通過將原子級薄的石墨烯與柔性、透明且防水的層相結合，SCC-GET實現了亞微米級厚度，并能與人體皮膚無縫貼合，不受運動影響，使其成為迄今為止在鹽水條件下報道的最薄的電生理傳感器。SCC-GET的便捷組裝特性使其可同時放置于多個身體部位以同步檢測生命體征信號?？傮w而言，本研究證實了SCC-GET在多種生物電子應用中的優異性能與可靠性，為先進生理監測系統的發展奠定了基礎，尤其在海洋等極端環境中具有廣闊應用前景。
