ST公司的STM8AF526x/8x/Ax和STM8AF6269/8x/Ax系列是汽車應用的8位MCU，提供32KB到128KB的非易失存儲器和集成了真數據EEPROM.器件的CPU工作頻率24MHz，20MIPS，有強勁的I/O，單獨的看門狗（獨立時鐘源）和時鐘安全系統，具有降低系統成本，提高性能和魯棒性，縮短開發周期和延長產品壽命。本文介紹了STM8AF526x/8x/Ax和STM8AF6269/8x/Ax框圖，主要特性，以及評估板STM8A-DISCOVERY包括STM8AF和STM8AL共板主要特性，STM8AF專用板主要特性，STM8AL專用板主要特性以及和硬件框圖，電路圖，材料清單和PCB設計圖。

This datasheet refers to the STM8AF526x/8x/Ax and STM8AF6269/8x/Ax products with 32to 128 Kbyte of program memory.

The STM8AF526x/8x/Ax and STM8AF6269/8x/Ax automotive 8-bit microcontrollersdescribed in this datasheet offer from 32 Kbyte to 128 Kbyte of non volatile memory andintegrated true data EEPROM. They are referred to as high density STM8A devices inSTM8S series and STM8AF series 8-bit microcontrollers reference manual （RM0016）。The STM8AF52 series features a CAN interface.

All devices of the STM8A product line provide the following benefits： reduced system cost，performance and robustness， short development cycles， and product longevity.

The system cost is reduced thanks to an integrated true data EEPROM for up to 300 kwrite/erase cycles and a high system integration level with internal clock oscillators，wtachdog， and brown-out reset.

Device performance is ensured by 20 MIPS at 24 MHz CPU clock frequency and enhancedcharacteristics which include robust I/O， independent watchdogs （with a separate clocksource）， and a clock security system.

Short development cycles are guaranteed due to application scalability across a commonfamily product architecture with compatible pinout， memory map， and modular peripherals.

Full documentation is offered with a wide choice of development tools.Product longevity is ensured in the STM8A family thanks to their advanced core which ismade in a state-of-the art technology for automotive applications with 3.3 V to 5.5 Voperating supply.

All STM8A and ST7 microcontrollers are supported by the same tools includingSTVD/STVP development environment， the STice emulator and a low-cost， third party incircuitdebugging tool.

STM8AF5288主要特性：

? AEC-Q10x qualified

? Core

– Max fCPU： 24 MHz

– Advanced STM8A core with Harvardarchitecture and 3-stage pipeline

– Average 1.6 cycles/instruction resulting in10 MIPS at 16 MHz fCPU for industry standard benchmark

? Memories

– Program memory： 32 to 128 Kbyte Flashprogram; data retention 20 years at 55℃

– Data memory： up to 2 Kbyte true dataEEPROM; endurance 300 kcycle

– RAM： 6 Kbyte

? Clock management

– Low-power crystal resonator oscillator withexternal clock input

– Internal， user-trimmable 16 MHz RC andlow-power 128 kHz RC oscillators

– Clock security system with clock monitor

? Reset and supply management

– Wait/auto-wakeup/Halt low-power modeswith user definable clock gating

– Low consumption power-on and powerdownreset

? Interrupt management

– Nested interrupt controller with 32 vectors

– Up to 37 external interrupts on 5 vectors

? Timers

– 2 general purpose 16-bit timers with up to 3CAPCOM channels each （IC， OC， PWM）

– Advanced control timer： 16-bit， 4 CAPCOMchannels， 3 complementary outputs， deadtimeinsertion and flexible synchronization

– 8-bit AR basic timer with 8-bit prescaler

– Auto-wakeup timer

– Window and independent watchdog timers

? I/Os

– Up to 68 user pins （11 high sink I/Os）

– Highly robust I/O design， immune againstcurrent injection

? Communication interfaces

– High speed 1 Mbit/s CAN 2.0B interface

– USART with clock output for synchronousoperation - LIN master mode

– LINUART LIN 2.2 compliant， master/slavemodes with automatic resynchronization

– SPI interface up to 10 Mbit/s or fMASTER/2

– I2C interface up to 400 Kbit/s

? Analog to digital converter （ADC）

– 10-bit resolution， 2 LSB TUE， 1 LSBlinearity and up to 16 multiplexed channels

? Operating temperature up to 150 °C

? Qualification conforms to AEC-Q100 grade 0

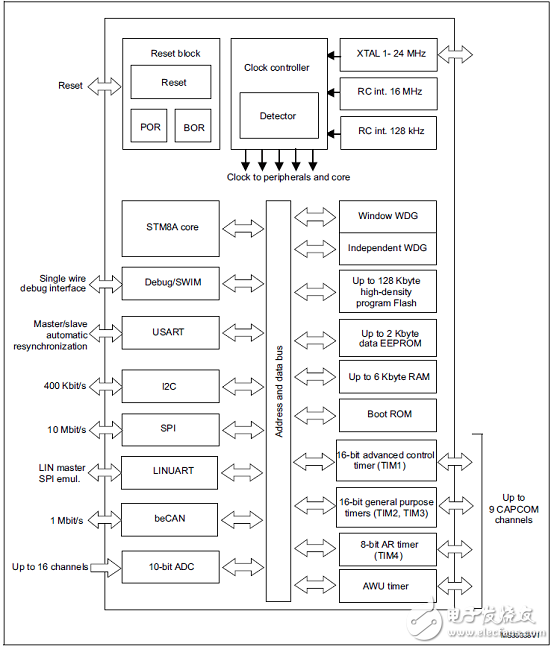

圖1.STM8AF526x/8x/Ax和STM8AF6269/8x/Ax框圖

評估板STM8A-DISCOVERY

The STM8A-DISCOVERY helps you discover the STM8AF and STM8AL automotivemicrocontroller family features and develop your applications through two dedicatedapplication boards that can be connected together via a LIN network.

The STM8AF board can perform both CAN and LIN communications with the MCU poweredat 5 V and is ready to be connected into a network with its integrated transceiver.

The STM8AL board manages LIN slave communication through its transceiver and uses a4-digit alphanumeric LCD display with the MCU powered at 3.3 V， offering low energypowermodes.

Both STM8AF and STM8AL boards include push buttons， LEDs， external connectors andallow various configurations to take advantage of the numerous capabilities of themicrocontrollers.

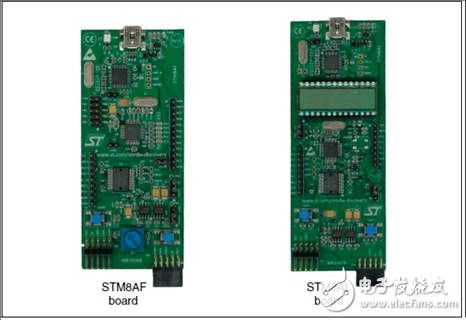

圖2.評估板STM8A-DISCOVERY（STM8F+STM8AL） 外形圖

STM8AF和STM8AL共板主要特性：

● On-board ST-LINK/V2 included for debugging and programming

● Board power supply： through 5 V USB bus

● Internal dual ST662A step-up converter building the 12 Vdc when powered by USBport

● External application power supply VBAT （up to 14 Vdc）

● 16 MHz HSE XTAL crystal oscillator

● L99PM62GXP power management IC with LIN and high speed CAN with SPI controlinterface and high-side drivers

● Two push buttons （USER1 and USER2）

● Extension header for L99PM62GXP including relays， high-side outputs and wake-upCapabilities

STM8AF專用板主要特性：

● STM8AF5288T microcontroller featuring 64 Kbytes Flash， 2 Kbytes data EEPROM，LIN， CAN in an 48-pin package

● Seven LEDs：

– LD1 （red/green） for USB communication

– LD2 （red） for 5 V power ON

– Five user LEDs LD3 （red） and LD4 to LD7 （green）

● RV1 potentiometer connected to the ADC peripheral

● Extension headers for MCU connectivity （full Port B， free ports pins， RESET）

STM8AL專用板主要特性：

● STM8AL3L68T microcontroller featuring 32 Kbytes Flash， 1 Kbytes data EEPROM，LCD in an 48-pin package

● Four LEDs：

– LD1 （red/green） for USB communication

– LD2 （red） for 3.3 V power ON

– 2 user LEDs LD3 （red） and LD4 （green）

● 4-digit alphanumeric LCD display including 4 bars display

● Extension header for MCU connectivity （free ports pins， RESET）

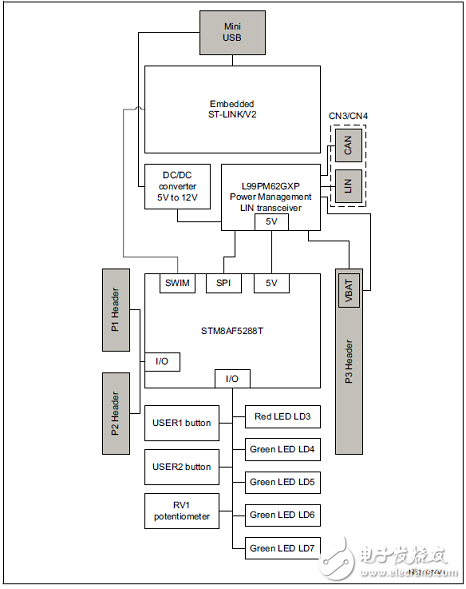

圖3.STM8F板硬件框圖

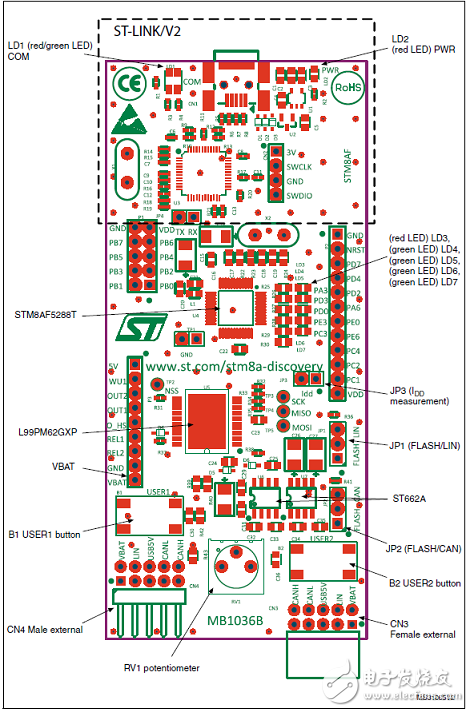

圖4.STM8AF板正面布局圖

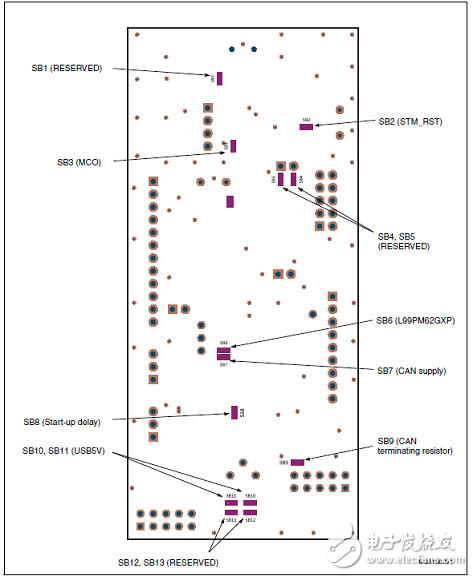

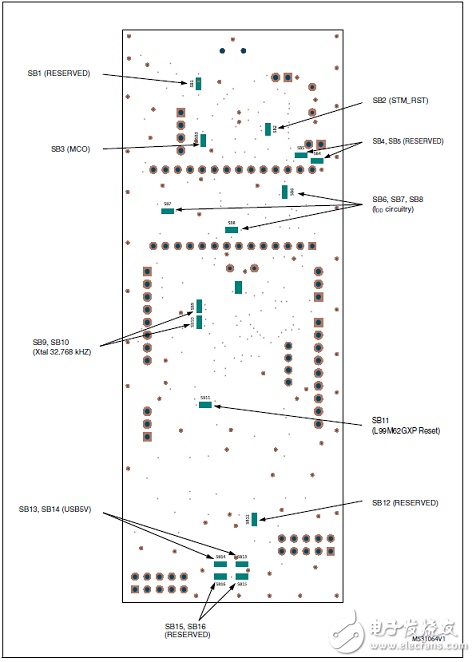

圖5.STM8AF板背面布局圖

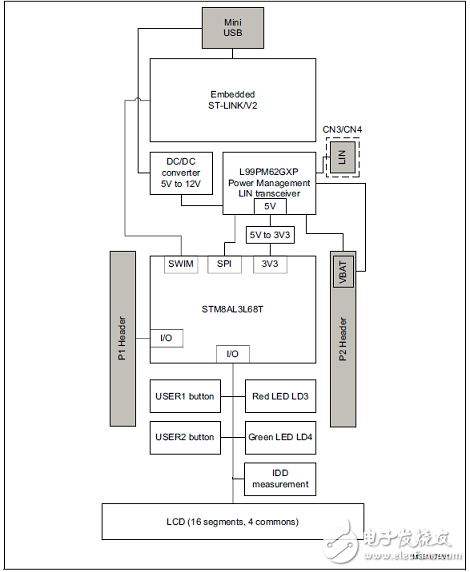

圖6.STM8AL板硬件框圖

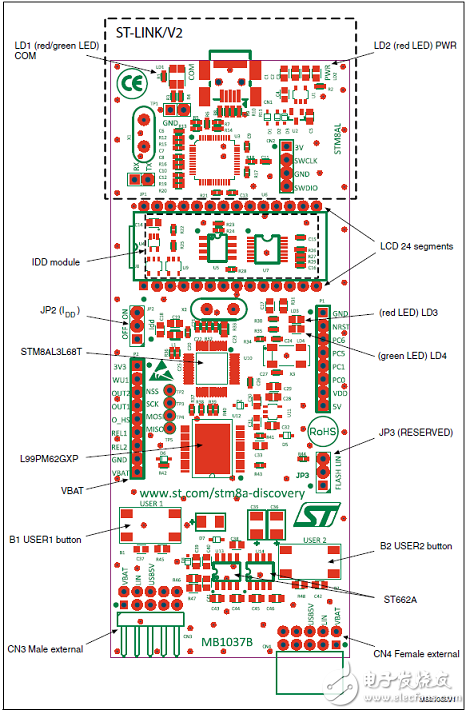

圖7.STM8AL板正面布局圖

圖8.STM8AL板背面布局圖

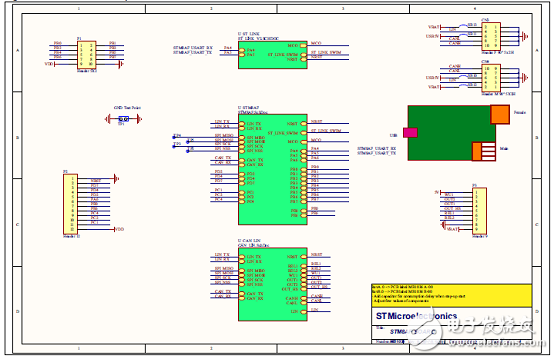

圖9.STM8AF板電路圖（1）

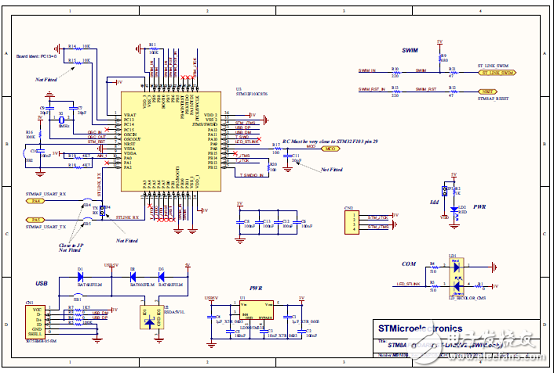

圖10.STM8AF板電路圖（2）：ST-LINK/V2（僅僅SWIM）

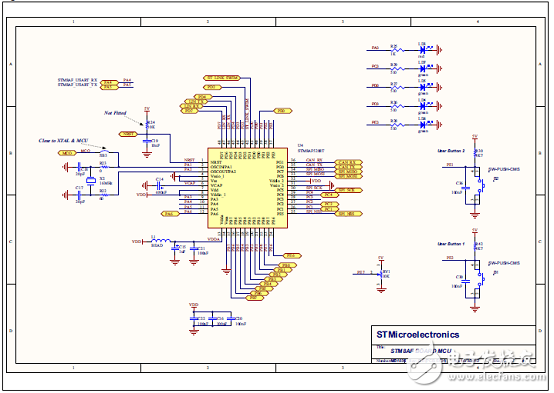

圖11.STM8AF板電路圖（3）：MCU

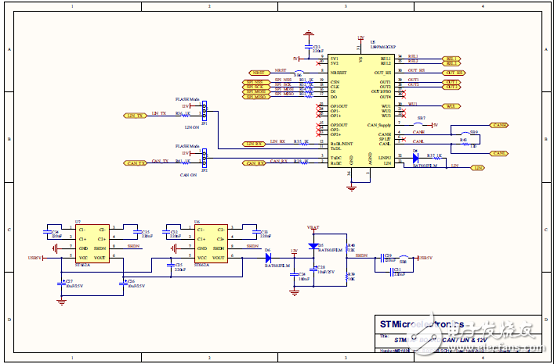

圖12.STM8AF板電路圖（4）：CAN/LIN和12V

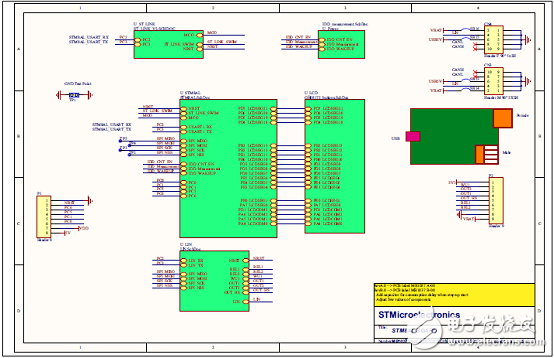

圖13.STM8AL板電路圖（1）

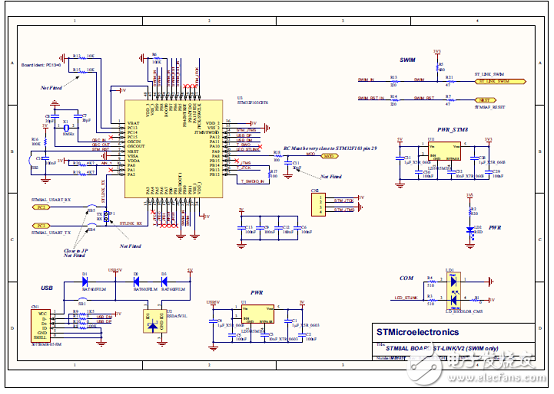

圖14.STM8AL板電路圖（2）：ST-LINK/V2（僅僅SWIM）

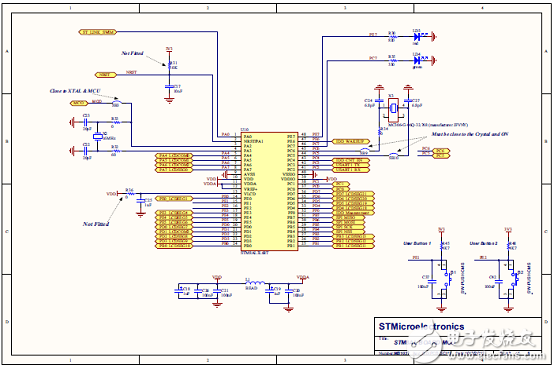

圖15.STM8AL板電路圖（3）：MCU

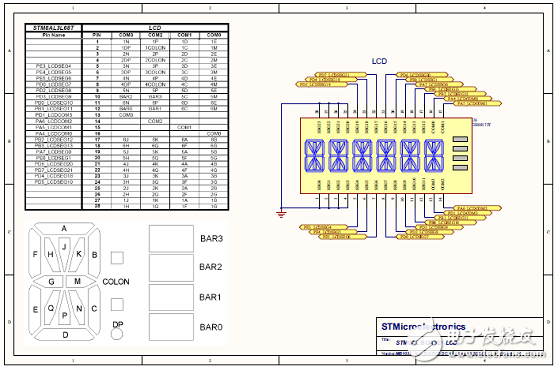

圖16.STM8AL板電路圖（3）：LCD

圖17.STM8AL板電路圖（4）：IDD測量

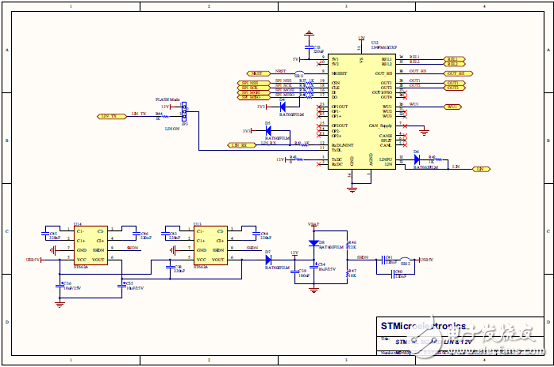

圖17.STM8AL板電路圖（4）：LIN和12V

STM8AF板和STM8AL板材料清單見：

MB1036-BOM和MB1037-BOM
