來源：OpenFPGA；;作者：碎碎思

在本文中，我們將介紹如何構建帶有VGA輸出的低分辨率熱成像。該解決方案基于Melexis MLX90640紅外陣列、FPGA S7 50開發板(AMD-Xilinx Spartan-7 FPGA，帶VGA輸出)。

Sparkfun Melexis MLX90640 紅外陣列

MLX90640 SparkFun IR Array Breakout 配備 32x24 熱電堆傳感器陣列，本質上形成低分辨率熱成像相機。

MLX90640 包含 768 個 FIR 像素。集成了一個環境傳感器，用于測量芯片的環境溫度，以及一個電源傳感器，用于測量 VDD。所有傳感器（IR、Ta 和 VDD）的輸出均存儲在內部 RAM 中，可通過 I2C 接口訪問。

該模塊具有 110°x75° 視場角，溫度測量范圍為 -40°C-300°C。

MLX90640 SparkFun 模塊已將上拉電阻連接到 I2C 總線，因此我們不推薦在開發板上使用 I2C 上拉電阻。

開發板原理圖：A rty_s7_sch-rev_b.pdf

https://digilent.com/reference/_media/reference/programmable-logic/arty-s7/arty_s7_sch-rev_b.pdf

MLX90640 需要主機平臺進行復雜的計算。我們的系統需要 20,000 字節或更多的 RAM。

MLX90640 的 I2C 地址為 0x33，由硬件定義。我們將使用專用的 I2C 通道來驅動 MLX90640。

MLX90640-數據表-Melexis.pdf

https://www.melexis.com/en/product/MLX90640/Far-Infrared-Thermal-Sensor-Array

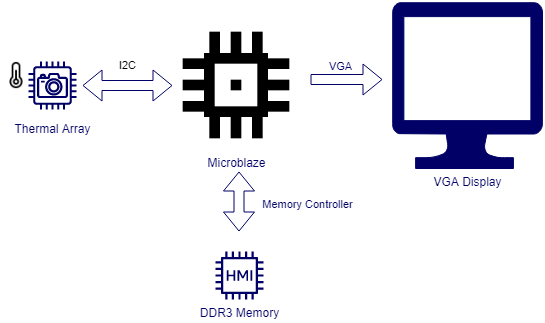

VGA熱成像攝像機系統設計

該系統非常簡單。只需撥動開關即可開啟或關閉攝像頭。Microblaze 軟微控制器通過 I2C 協議連接到熱陣列，計算溫度數據，將其轉換為顏色并將其存儲在 DDR3 SDRAM 內存中的非活動緩沖區中。數據存儲完成后，它會將緩沖區切換至 VGA 顯示。攝像頭開啟時，所有操作均按此進行。

FPGA硬件設計

該系統將顯示來自 DDR 中的幀緩沖區的圖像，使用 FPGA 邏輯中的多個組件來生成 VGA 顏色和同步信號。

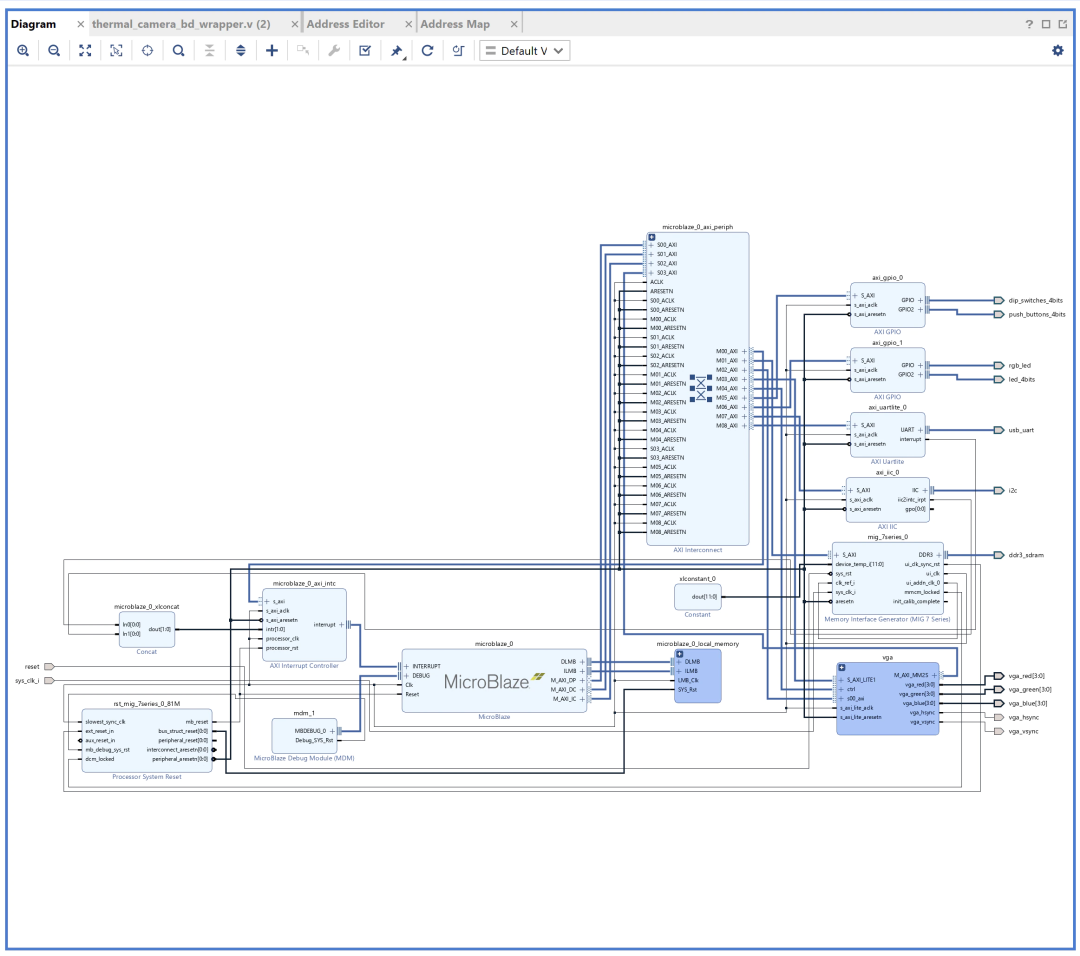

BD設計

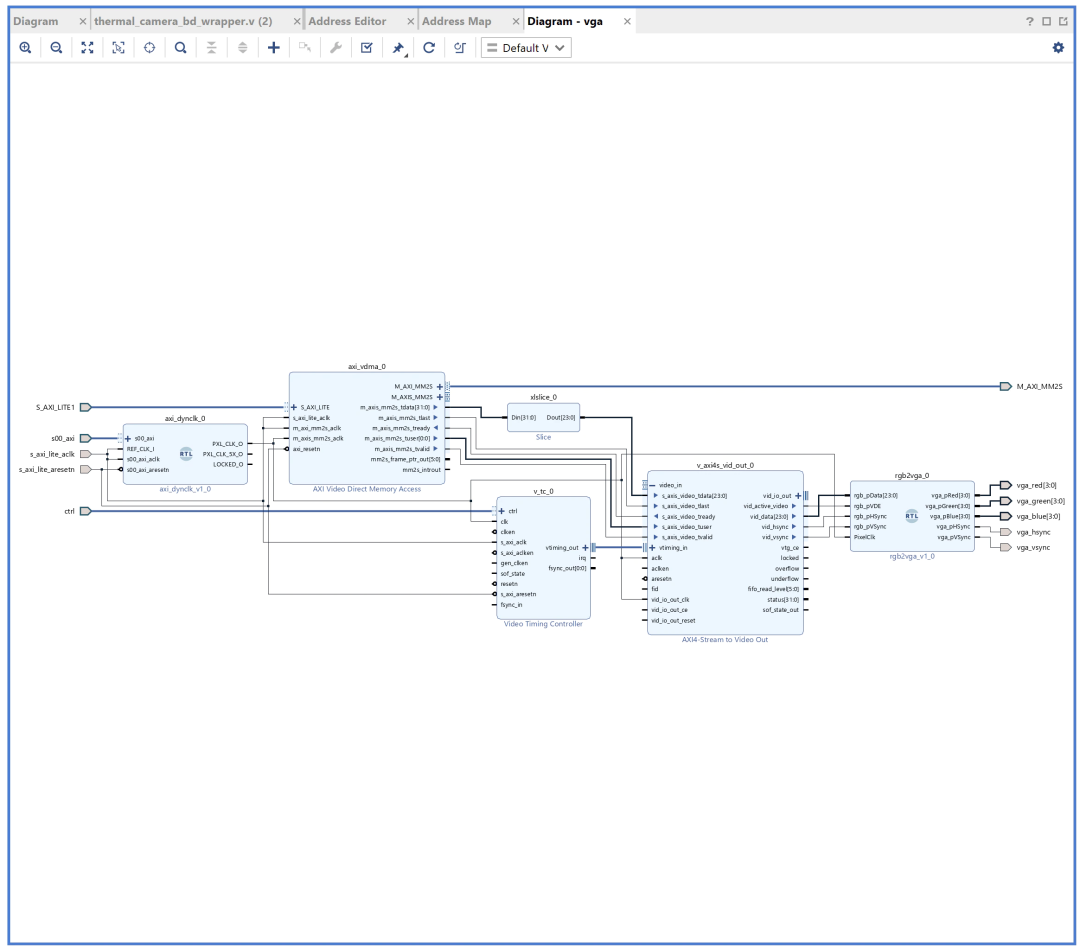

VGA層次結構塊設計

VGA 層次結構基于Zybo VGA 輸出 - 實時系統 - York Wiki 服務， 適用于 Microblaze

https://wiki.york.ac.uk/display/RTS/Zybo+VGA+Output

MLX90640 紅外陣列驅動器

與傳感器的通信是通過 I2C 協議完成的。

該設備使用 I2C 協議，支持 FM+ 模式（高達 1MHz 時鐘頻率），并且在總線上只能作為一個從機。

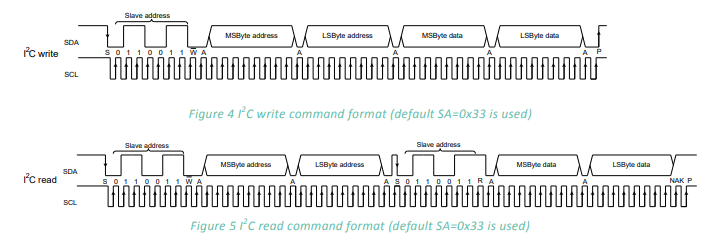

開始/停止條件

每個通信會話都由一個 START 條件啟動，以一個 STOP 條件結束。START 條件由 SDA 信號由高電平跳變至低電平觸發，而 STOP 條件由低電平跳變至高電平觸發。兩種跳變都必須在 SCL 信號為高電平時進行。

測試源代碼：

/**
* Example of reeding temp data from mlx90640 with the Digilent Arty S7, with animation
*/


#include "platform.h"
#include "xil_printf.h"
#include "mlx90640_api.h"

#include "xiic.h"
#include "xintc.h"
#include "xil_exception.h"
#include "sleep.h"
/*
* The following constants map to the XPAR parameters createdinthe
* xparameters.h file. They are defined here such that a user can easily
* change all the needed parametersinone place.
*/
#define IIC_DEVICE_ID XPAR_IIC_0_DEVICE_ID
#define INTC_DEVICE_ID XPAR_INTC_0_DEVICE_ID
#define IIC_INTR_ID XPAR_INTC_0_IIC_0_VEC_ID

XIic IicInstance; /* The instance of the IIC device */

XIntc InterruptController; /* The instance of the Interrupt controller */

#define IIC_SLAVE_ADDR 0x33
#define IIC_SCLK_RATE 100000

volatile u8 TransmitComplete;
volatile u8 ReceiveComplete;

/*
* The following structure contains fields that are used with the callbacks
* (handlers) of the IIC driver. The driver asynchronously calls handlers
* when abnormal events occur or when data has been sent or received. This
* structure must be volatile to work when the code is optimized.
*/
volatile struct {
int EventStatus;
int RemainingRecvBytes;
int EventStatusUpdated;
int RecvBytesUpdated;
} HandlerInfo;

#define BL 55
#define DC 54
#define WIDTH 32
#define HEIGHT 24

#define TEST_BUFFER_SIZE 512
#define TA_SHIFT 8

/************************** Function Prototypes ******************************/

int IicRepeatedStartExample();

static int SetupInterruptSystem(XIic *IicInstPtr);
static void ReceiveHandler(XIic *InstancePtr);
static void SendHandler(XIic *InstancePtr);

static void StatusHandler(XIic *InstancePtr, int Event);

void VGA_Fill_Color(uint16_t color);
int MLX90640_I2CRead(uint8_t slaveAddr, uint16_t startAddress,
 uint16_t nMemAddressRead, uint16_t *data);
int MLX90640_I2CWrite(uint8_t slaveAddr, uint16_t writeAddress, uint16_t data);
void VGA_Fill_Display(float*mlx90640Frame);
void VGA_DrawPixel(uint16_t x, uint16_t y, uint16_t color);
long map(long x, long in_min, long in_max, long out_min, long out_max);

u8 SendBuffer[TEST_BUFFER_SIZE];  //I2C TX
u8 RecvBuffer[TEST_BUFFER_SIZE];  //I2C RX

u16 frame[WIDTH][HEIGHT];

const uint16_t camColors[] = { 0x480F, 0x400F, 0x400F, 0x400F, 0x4010, 0x3810,
 0x3810, 0x3810, 0x3810, 0x3010, 0x3010, 0x3010, 0x2810, 0x2810, 0x2810,
 0x2810, 0x2010, 0x2010, 0x2010, 0x1810, 0x1810, 0x1811, 0x1811, 0x1011,
 0x1011, 0x1011, 0x0811, 0x0811, 0x0811, 0x0011, 0x0011, 0x0011, 0x0011,
 0x0011, 0x0031, 0x0031, 0x0051, 0x0072, 0x0072, 0x0092, 0x00B2, 0x00B2,
 0x00D2, 0x00F2, 0x00F2, 0x0112, 0x0132, 0x0152, 0x0152, 0x0172, 0x0192,
 0x0192, 0x01B2, 0x01D2, 0x01F3, 0x01F3, 0x0213, 0x0233, 0x0253, 0x0253,
 0x0273, 0x0293, 0x02B3, 0x02D3, 0x02D3, 0x02F3, 0x0313, 0x0333, 0x0333,
 0x0353, 0x0373, 0x0394, 0x03B4, 0x03D4, 0x03D4, 0x03F4, 0x0414, 0x0434,
 0x0454, 0x0474, 0x0474, 0x0494, 0x04B4, 0x04D4, 0x04F4, 0x0514, 0x0534,
 0x0534, 0x0554, 0x0554, 0x0574, 0x0574, 0x0573, 0x0573, 0x0573, 0x0572,
 0x0572, 0x0572, 0x0571, 0x0591, 0x0591, 0x0590, 0x0590, 0x058F, 0x058F,
 0x058F, 0x058E, 0x05AE, 0x05AE, 0x05AD, 0x05AD, 0x05AD, 0x05AC, 0x05AC,
 0x05AB, 0x05CB, 0x05CB, 0x05CA, 0x05CA, 0x05CA, 0x05C9, 0x05C9, 0x05C8,
 0x05E8, 0x05E8, 0x05E7, 0x05E7, 0x05E6, 0x05E6, 0x05E6, 0x05E5, 0x05E5,
 0x0604, 0x0604, 0x0604, 0x0603, 0x0603, 0x0602, 0x0602, 0x0601, 0x0621,
 0x0621, 0x0620, 0x0620, 0x0620, 0x0620, 0x0E20, 0x0E20, 0x0E40, 0x1640,
 0x1640, 0x1E40, 0x1E40, 0x2640, 0x2640, 0x2E40, 0x2E60, 0x3660, 0x3660,
 0x3E60, 0x3E60, 0x3E60, 0x4660, 0x4660, 0x4E60, 0x4E80, 0x5680, 0x5680,
 0x5E80, 0x5E80, 0x6680, 0x6680, 0x6E80, 0x6EA0, 0x76A0, 0x76A0, 0x7EA0,
 0x7EA0, 0x86A0, 0x86A0, 0x8EA0, 0x8EC0, 0x96C0, 0x96C0, 0x9EC0, 0x9EC0,
 0xA6C0, 0xAEC0, 0xAEC0, 0xB6E0, 0xB6E0, 0xBEE0, 0xBEE0, 0xC6E0, 0xC6E0,
 0xCEE0, 0xCEE0, 0xD6E0, 0xD700, 0xDF00, 0xDEE0, 0xDEC0, 0xDEA0, 0xDE80,
 0xDE80, 0xE660, 0xE640, 0xE620, 0xE600, 0xE5E0, 0xE5C0, 0xE5A0, 0xE580,
 0xE560, 0xE540, 0xE520, 0xE500, 0xE4E0, 0xE4C0, 0xE4A0, 0xE480, 0xE460,
 0xEC40, 0xEC20, 0xEC00, 0xEBE0, 0xEBC0, 0xEBA0, 0xEB80, 0xEB60, 0xEB40,
 0xEB20, 0xEB00, 0xEAE0, 0xEAC0, 0xEAA0, 0xEA80, 0xEA60, 0xEA40, 0xF220,
 0xF200, 0xF1E0, 0xF1C0, 0xF1A0, 0xF180, 0xF160, 0xF140, 0xF100, 0xF0E0,
 0xF0C0, 0xF0A0, 0xF080, 0xF060, 0xF040, 0xF020, 0xF800, };

intmain() {

init_platform();

int Status;

XIic_Config *ConfigPtr; /* Pointer to configuration data */

init_platform();

ConfigPtr = XIic_LookupConfig(XPAR_IIC_0_DEVICE_ID);
if(ConfigPtr == NULL) {
returnXST_FAILURE;
}
//print("XIic_LookupConfig

");

Status = XIic_CfgInitialize(&IicInstance, ConfigPtr,
 ConfigPtr->BaseAddress);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}

//print("XIic_CfgInitialize

");

/*
 * Setup the Interrupt System.
 */
Status = SetupInterruptSystem(&IicInstance);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}

//print("SetupInterruptSystem

");

/*
 * Set the Transmit, Receive and Status handlers.
 */
XIic_SetSendHandler(&IicInstance, &IicInstance, (XIic_Handler) SendHandler);
//print("XIic_SetSendHandler

");

XIic_SetStatusHandler(&IicInstance, &IicInstance,
 (XIic_StatusHandler) StatusHandler);
//print("XIic_SetStatusHandler

");

XIic_SetRecvHandler(&IicInstance, &IicInstance,
 (XIic_Handler) ReceiveHandler);

//print("XIic_SetRecvHandler

");

/*
 * Set the Address of the Slave.
 */
Status = XIic_SetAddress(&IicInstance, XII_ADDR_TO_SEND_TYPE,
IIC_SLAVE_ADDR);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
//print("XIic_SetAddress

");

/*
 * Start the IIC device.
 */
Status = XIic_Start(&IicInstance);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}

//print("XIic_Start

");

static u16 mlx90640Frame[834];
static uint16_t eeMLX90640[832];
paramsMLX90640 mlx90640;

floatTa;
floatemissivity = 0.95;
staticfloatmlx90640To[768];

MLX90640_DumpEE(0x33, eeMLX90640);
//print("MLX90640_DumpEE

");
MLX90640_ExtractParameters(eeMLX90640, &mlx90640);
//print("MLX90640_ExtractParameters

");

while(1) {

 MLX90640_GetFrameData(0x33, mlx90640Frame);
 //print("MLX90640_GetFrameData

");
 Ta = MLX90640_GetTa(mlx90640Frame, &mlx90640) - TA_SHIFT;
 //print("MLX90640_GetTa

");
 MLX90640_CalculateTo(mlx90640Frame, &mlx90640, emissivity, Ta,
  mlx90640To);
 //print("MLX90640_CalculateTo

");
for(int i = 0; i < 24; i++) {
? ?for?(int y = 0; y < 32; y++) {
? ? xil_printf(" %d ", (int) (mlx90640To[y + (i * 32)]));
? ?}
? ?xil_printf("

");
? }
? //VGA_Fill_Display(&mlx90640To);
?}

?/*
? * Stop the IIC device.
? */
?Status = XIic_Stop(&IicInstance);
if?(Status != XST_SUCCESS) {
return?XST_FAILURE;
?}

?cleanup_platform();
return?0;
}

long map(long x, long in_min, long in_max, long out_min, long out_max) {
return?(x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min;
}

void VGA_Fill_Display(float?*mlx90640Frame) {
// //834
// uint16_t i, j;
//// uint8_t data[2];
//?float?temp;
// u8 mapped;
// u16 colour;
//
//?for?(i = 0; i < 240; i++)
// ?for?(j = 0; j < 320; j++) {
//
// ? temp = (mlx90640Frame[((i/10)*32)+(j/10)]);
// ? mapped = map((u16) temp, 0, 100, 0, 255);
// ? colour = camColors[mapped];
// ? VGA_DrawPixel(0+i, 0+j, colour);
//
// ?}
// //ST7789_UnSelect();
}

void VGA_DrawPixel(uint16_t x, uint16_t y, uint16_t color) {
//?if?((x < 0) || (x >= ST7789_WIDTH) ||
//  (y < 0) || (y >= ST7789_HEIGHT))return;
//
// ST7789_SetAddressWindow(x, y, x, y);
// uint8_t data[] = {color >> 8, color & 0xFF};
// //ST7789_Select();
// ST7789_WriteData(data, sizeof(data));
// //ST7789_UnSelect();
}

void VGA_Fill_Color(uint16_t color) {
// uint16_t i, j;
// ST7789_SetAddressWindow(0, 0, ST7789_WIDTH - 1, ST7789_HEIGHT - 1);
// //ST7789_Select();
// //XSpiPs_SetSlaveSelect(&SpiInstance_EMIO, 0x00);
//
//for(i = 0; i < ST7789_WIDTH; i++)
// ?for?(j = 0; j < ST7789_HEIGHT; j++) {
// ? uint8_t data[] = {color >> 8, color & 0xFF};
//  ST7789_WriteData(data, sizeof(data));
// }
// //ST7789_UnSelect();
}

int MLX90640_I2CRead(uint8_t slaveAddr, uint16_t startAddress,
 uint16_t nMemAddressRead, uint16_t *data) {

//print("MLX90640_I2CRead

");
int Status;
int BusBusy;

/*
 * Set the defaults.
 */
ReceiveComplete = 1;

/*
 * Set the Repeated Start option.
 */
IicInstance.Options = XII_REPEATED_START_OPTION;

int cnt = 0;
int i = 0;
u8 cmd[2] = { 0, 0 };
u8 i2cData[1664] = { 0 };
uint16_t *p;

p = data;
cmd[0] = startAddress >> 8;
cmd[1] = startAddress & 0x00FF;

Status = XIic_MasterSend(&IicInstance, cmd, 2);
if(Status != XST_SUCCESS) {

returnXST_FAILURE;
}
//print("XIic_MasterSend

");
usleep(1000);

/*
 * This isforverification that Bus is not released and still Busy.
 */
BusBusy = XIic_IsIicBusy(&IicInstance);

ReceiveComplete = 1;
IicInstance.Options = 0x0;

/*
 * Receive the Data.
 */
Status = XIic_MasterRecv(&IicInstance, i2cData, 2 * nMemAddressRead);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
usleep(1000);
//print("XIic_MasterRecv

");

while(XIic_IsIicBusy(&IicInstance) == TRUE) {

}

for(cnt = 0; cnt < nMemAddressRead; cnt++) {
? i = cnt << 1;
? *p++ = (uint16_t) i2cData[i] * 256 + (uint16_t) i2cData[i + 1];
?}

return?0;
}

int MLX90640_I2CWrite(uint8_t slaveAddr, uint16_t writeAddress, uint16_t data) {

?int Status;
?int BusBusy;

?/*
? * Set the defaults.
? */
?TransmitComplete = 1;

?/*
? * Set the Repeated Start option.
? */
?IicInstance.Options = XII_REPEATED_START_OPTION;

?u8 cmd[4] = { 0, 0, 0, 0 };
?static uint16_t dataCheck;

?cmd[0] = writeAddress >> 8;
cmd[1] = writeAddress & 0x00FF;
cmd[2] = data >> 8;
cmd[3] = data & 0x00FF;


/*
 * Send the data.
 */
Status = XIic_MasterSend(&IicInstance, cmd, 4);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}

print("XIic_MasterSend

");

/*
 * Wait till data is transmitted.
 */
//while(TransmitComplete) {
//
// }
/*
 * This isforverification that Bus is not released and still Busy.
 */
BusBusy = XIic_IsIicBusy(&IicInstance);

TransmitComplete = 1;
IicInstance.Options = 0x0;

/*
 * Wait till data is transmitted.
 */
//while((TransmitComplete) || (XIic_IsIicBusy(&IicInstance) == TRUE)) {
//
// }

MLX90640_I2CRead(slaveAddr, writeAddress, 1, &dataCheck);

if(dataCheck != data) {
return-2;
}

return0;
}

/*****************************************************************************/
/**
* Thisfunctionsetups the interrupt system so interrupts can occurforthe
* IIC. Thefunctionis application-specific since the actual system may or
* may not have an interrupt controller. The IIC device could be directly
* connected to a processor without an interrupt controller. The user should
* modify thisfunctionto fit the application.
*
* @param IicInstPtr contains a pointer to the instance of the IIC which
* is going to be connected to the interrupt controller.
*
* @returnXST_SUCCESSifsuccessfulelseXST_FAILURE.
*
* @note None.
*
******************************************************************************/
static int SetupInterruptSystem(XIic *IicInstPtr) {
int Status;

if(InterruptController.IsStarted == XIL_COMPONENT_IS_STARTED) {
returnXST_SUCCESS;
}

/*
 * Initialize the interrupt controller driver so that it's ready to use.
 */
Status = XIntc_Initialize(&InterruptController, INTC_DEVICE_ID);
if (Status != XST_SUCCESS) {
 return XST_FAILURE;
}

/*
 * Connect the device driver handler that will be called when an
 * interrupt for the device occurs, the handler defined above performs
 * the specific interrupt processing for the device.
 */
Status = XIntc_Connect(&InterruptController, IIC_INTR_ID,
 (XInterruptHandler) XIic_InterruptHandler, IicInstPtr);
if (Status != XST_SUCCESS) {
 return XST_FAILURE;
}

/*
 * Start the interrupt controller so interrupts are enabled for all
 * devices that cause interrupts.
 */
Status = XIntc_Start(&InterruptController, XIN_REAL_MODE);
if (Status != XST_SUCCESS) {
 return XST_FAILURE;
}

/*
 * Enable the interrupts for the IIC device.
 */
XIntc_Enable(&InterruptController, IIC_INTR_ID);

/*
 * Initialize the exception table.
 */
Xil_ExceptionInit();

/*
 * Register the interrupt controller handler with the exception table.
 */
Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,
 (Xil_ExceptionHandler) XIntc_InterruptHandler,
 &InterruptController);

/*
 * Enable non-critical exceptions.
 */
Xil_ExceptionEnable();

return XST_SUCCESS;
}

/*****************************************************************************/
/**
* This Send handler is called asynchronously from an interrupt context and
* indicates that data in the specified buffer has been sent.
*
* @param InstancePtr is a pointer to the IIC driver instance for which
*  the handler is being called for.
*
* @return None.
*
* @note None.
*
******************************************************************************/
static void SendHandler(XIic *InstancePtr) {
TransmitComplete = 0;
}

/*****************************************************************************/
/**
* This Status handler is called asynchronously from an interrupt
* context and indicates the events that have occurred.
*
* @param InstancePtr is a pointer to the IIC driver instance for which
* the handler is being called for.
* @param Event indicates the condition that has occurred.
*
* @return None.
*
* @note None.
*
******************************************************************************/
static void StatusHandler(XIic *InstancePtr, int Event) {

}

/*****************************************************************************/
/**
* This Receive handler is called asynchronously from an interrupt context and
* indicates that data in the specified buffer has been Received.
*
* @param InstancePtr is a pointer to the IIC driver instance for which
*  the handler is being called for.
*
* @return None.
*
* @note None.
*
******************************************************************************/
static void ReceiveHandler(XIic *InstancePtr) {
ReceiveComplete = 0;
}

完整代碼

將傳感器的驅動及VGA的驅動結合起來形成完整的代碼進行測試：

視頻

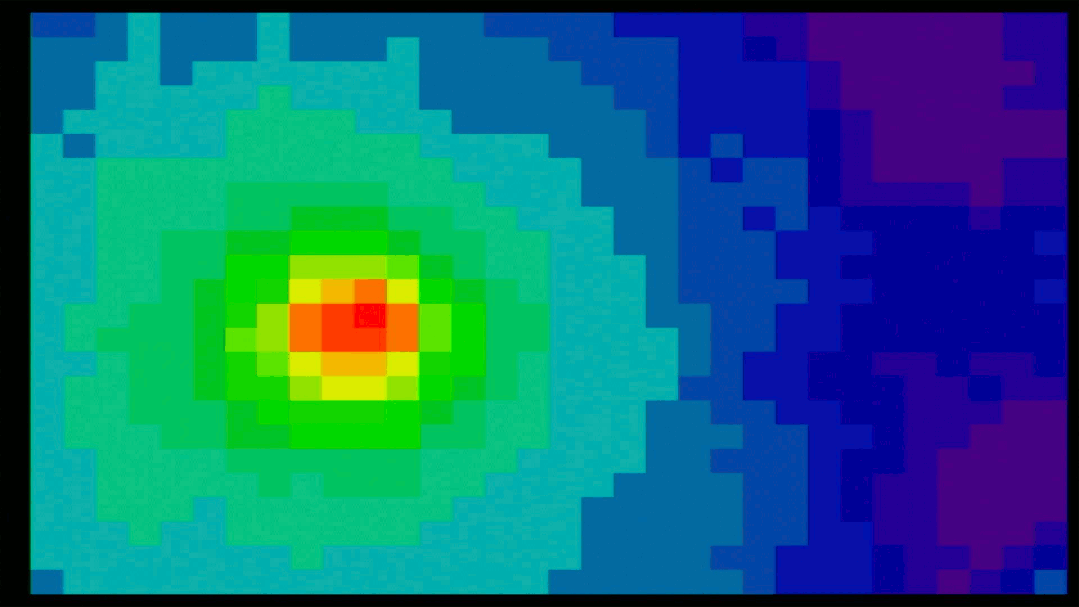

VGA 熱成像演示視頻：該視頻展示了熱像儀以 800x600 @60Hz 捕獲的 VGA 輸出，Microblaze 軟處理器和 MLX90640 紅外熱陣列傳感器之間的 I2C 協議下的通信。

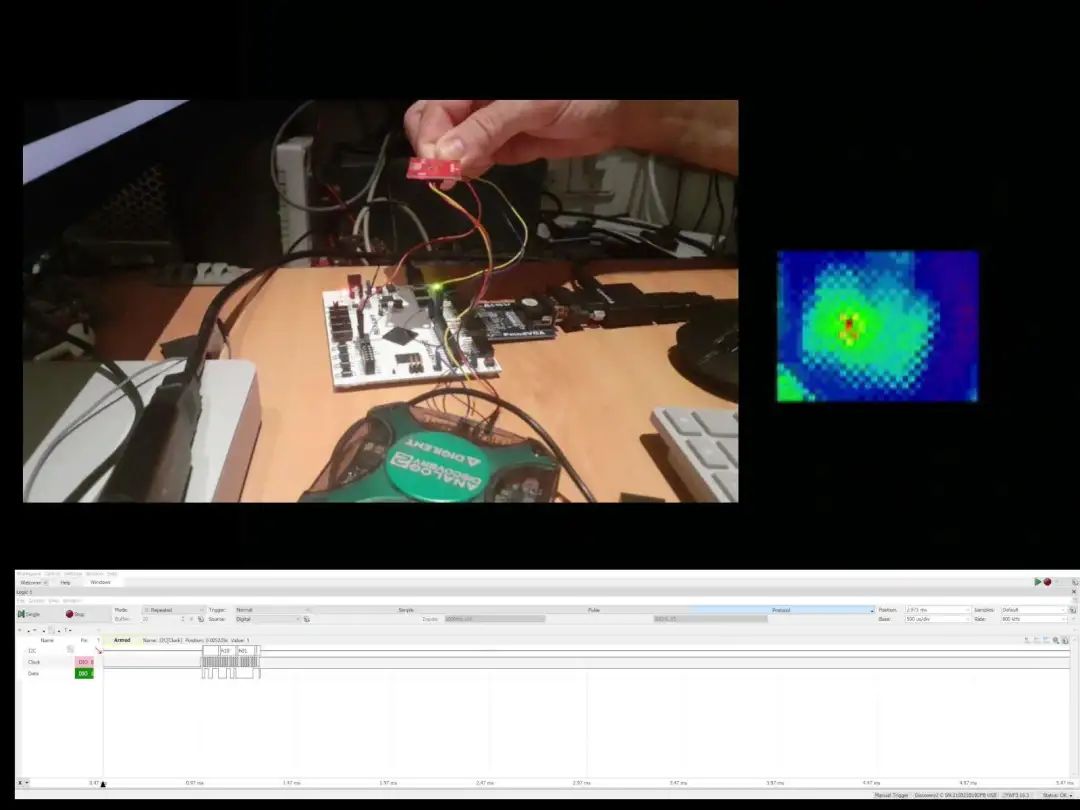

視頻中，首先將一只手放在傳感器前，然后將傳感器指向 Arty S7 開發板，我們可以看到 Spartan-7 FPGA 上的溫差。當傳感器指向 Spartan-7 FPGA 時，讀數為最高溫度：54.7 攝氏度，最低溫度：31.87 攝氏度。

代碼鏈接

https://github.com/javagoza/E14SpartanMigrationProgram/tree/main

https://community.element14.com/technologies/fpga-group/b/blog/posts/arty-s7-50-vga-thermal-imaging-camera

總結

東西不復雜，主要就是一個傳感器的驅動+VGA驅動（很多歷程），所以該項目還有很大的改進和優化空間。需要改進的方面：

使用 HDL 執行圖像縮放。將每幀占用的內存量從 800600 像素（480,000 像素）減少到 3224 像素（768 像素）。

將像素設置為無符號 16 位而不是無符號 32 位，可以將處理和所需的內存量減少一半。我們每個像素只需要 12 位。

在 HDL 中執行顏色空間轉換。

每次讀取時僅處理發生變化的傳感器單元。每幀將單元數量減少一半。
