Maxim公司的MAX30102是高靈敏度血氧和心率生物傳感器,包括內部的LED,光電檢測器,光學元件,以及環境光抑制的低噪音電子學。單個1.8V電源,內部LED電源5.0V,通信通過標準的I2C接口進行,工作溫度-40℃ 到 +85℃,微細5.6mm x 3.3mm x 1.55mm 14引腳封裝,主要用在可穿戴設備以及健美輔助設備。本文介紹了MAX30102主要優勢和特性,系統框圖和功能框圖,典型應用電路以及評估板MAX30102 EVK主要特性,子板和主板電路圖,材料清單和PCB設計圖。
The MAX30102 is an integrated pulse oximetry and heart-rate monitor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.
The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
MAX30102主要優勢和特性:
Heart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective Solution
Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module Integrated Cover Glass for Optimal, Robust Performance
Ultra-Low Power Operation for Mobile Devices Programmable Sample Rate and LED Current for Power Savings
Low-Power Heart-Rate Monitor (《1mW)
Ultra-Low Shutdown Current (0.7μA, typ)
Fast Data Output Capability High Sample Rates
Robust Motion Artifact Resilience High SNR
-40℃ to +85℃ Operating Temperature Range
MAX30102應用:
Wearable Devices
Fitness Assistant Devices

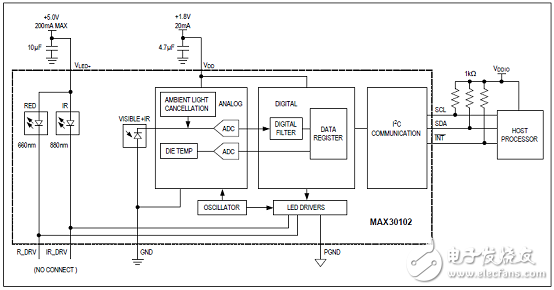

圖1.MAX30102系統框圖

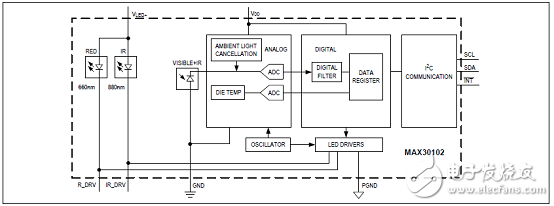

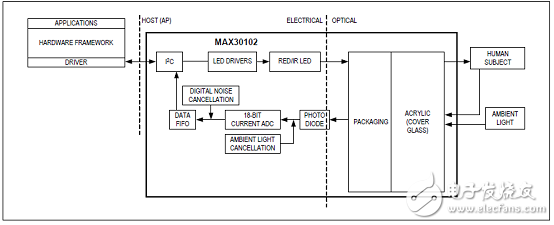

圖2.MAX30102功能框圖
圖3.MAX30102典型應用電路
評估板MAX30102 EVK
The MAX30102 evaluation kit (EV kit) provides a provendesign to evaluate the MAX30102 integrated pulse-oximetryand heart-rate monitor integrated circuit (IC)。 The EV kitconsist of two boards. USBOSMB is the mother boardand MAX30102DBEVKIT is the daughter board thatincludes the MAX30102 and an accelerometer. The EVkit is powered using the USB supply to generate +1.8Vfor the sensor and +4.5V for the internal LEDs of theMAX30102, and +3.3V for the accelerometer.The EV kit comes with a MAX30102EFD+ installed in a14-pin OESIP package.
評估板MAX30102 EVK特性和優勢:
●● Real-Time Monitoring
●● Flexible PCB Design
●● USB-Powered
●● On-Board Accelerometer
●● Proven PCB Layout
●● Fully Assembled and Tested
●● Windows? 7-, and Windows 8/8.1-CompatibleSoftware
圖4.評估板MAX30102 EVK子板電路圖

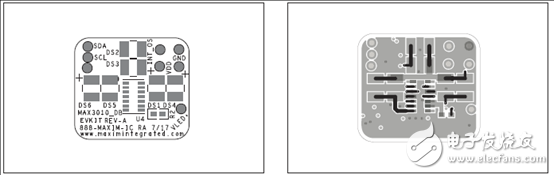

圖5.評估板MAX30102 EVK子板PCB設計圖:左:元件布局;右:層2

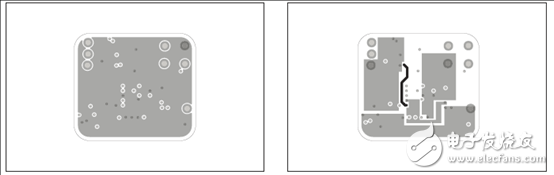

圖6.評估板MAX30102 EVK子板PCB設計圖:左:層3;右:元件面布線圖

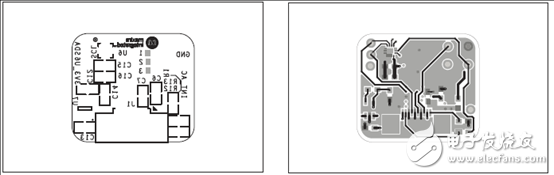

圖7.評估板MAX30102 EVK子板PCB設計圖:左:焊接面布局;右:焊接面元件布局

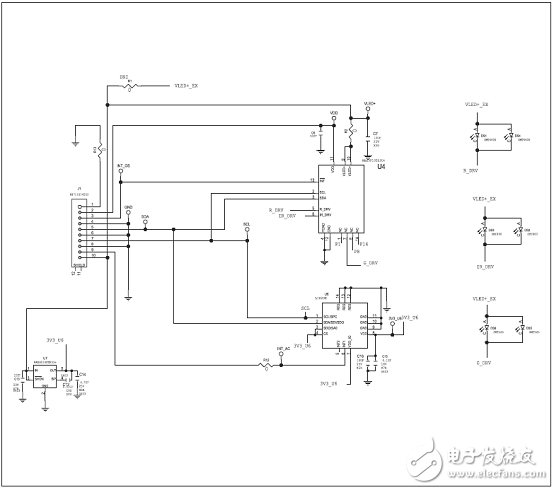

圖8.評估板MAX30102 EVK主板電路圖

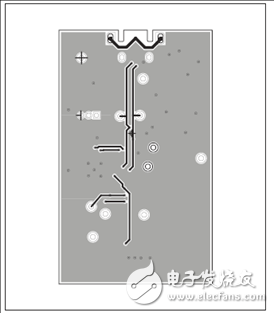

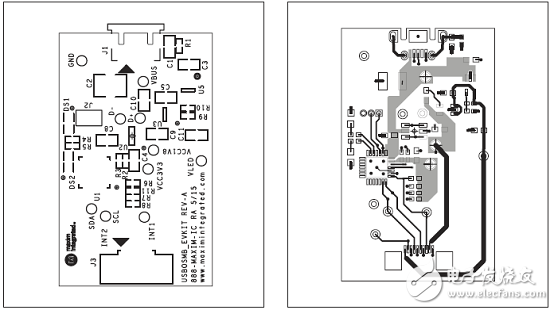

圖9.評估板MAX30102 EVK主板PCB設計圖:元件面布局;右:元件面PCB布局
圖810.評估板MAX30102 EVK主板焊接面PCB布局圖

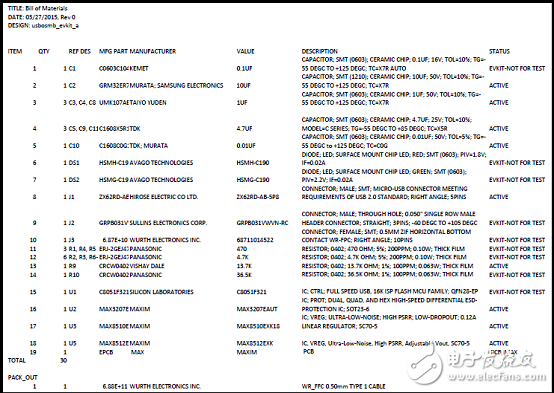

評估板MAX30102 EVK主板材料清單:
-
