12Vdc的熒光燈驅動電路-12VDC Fluorescent Lamp Driver
A number of people have been unable to find the transformer needed for the Black Light project, so I looked around to see if I could find a fluorescent lamp driver that does not require any special components. I finally found one in Electronics Now. Here it is. It uses a normal 120 to 6V stepdown transformer in reverse to step 12V to about 350V to drive a lamp without the need to warm the filaments.

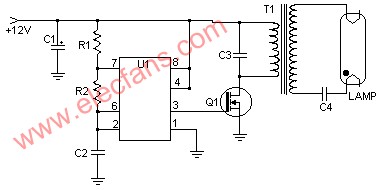

Schematic
Parts:
Part
Total Qty.
Description
Substitutions
C1
1
100uf 25V Electrolytic Capacitor
C2,C3
2
0.01uf 25V Ceramic Disc Capacitor
C4
1
0.01uf 1KV Ceramic Disc Capacitor
R1
1
1K 1/4W Resistor
R2
1
2.7K 1/4W Resistor
Q1
1
IRF510 MOSFET
U1
1
TLC555 Timer IC
T1
1
6V 300mA Transformer
LAMP
1
4W Fluorescent Lamp
MISC
1
Board, Wire, Heatsink For Q1
Notes:
1. Q1 must be installed on a heat sink.
2. A 240V to 10V transformer will work better then the one in the parts list. The problem is that they are hard to find.
3. This circuit can give a nasty (but not too dangerous) shock. Be careful around the output leads.
-
