低電壓1.15V至5.5V,8通道雙向邏輯電平轉換器adg3308/adg3308-1數據表

2017-10-24 | rar | 0.38 MB | 次下載 | 免費

資料介紹

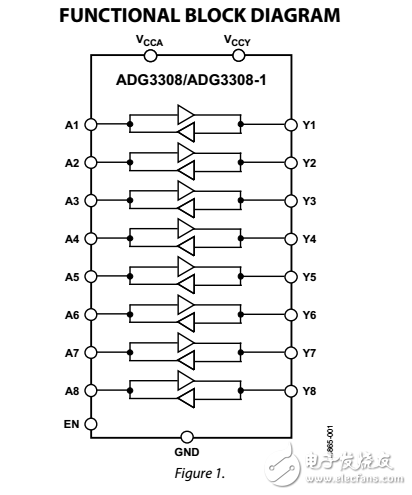

  The ADG3308/ADG3308-1 are bidirectional level translators containing eight bidirectional channels. They can be used in multivoltage digital system applications, such as a data transfer between a low voltage DSP controller and a higher voltage device. The internal architecture allows the device to perform bidirectional level translation without an additional signal to set the direction in which the translation takes place.

  The voltage applied to VCCA sets the logic levels on the A side of the device, and VCCY sets the levels on the Y side. For proper operation, VCCA must always be less than VCCY. The VCCA compatible logic signals applied to the A side of the device appear as VCCY compatible levels on the Y side. Similarly, VCCY compatible logic levels applied to the Y side of the device appear as VCCA compatible logic levels on the A side.

  The enable pin (EN) provides three-state operation on both the A side and the Y side pins. When the EN pin is pulled low, the terminals on both sides of the device are in the high impedance state. For normal operation, EN should be driven high.

  The ADG3308 is available in a compact 20-lead TSSOP and a 20-lead LFCSP. The ADG3308-1 is available in a 20-ball WLCSP. The EN pin is referred to the VCCY supply voltage for the ADG3308 and to the VCCA supply voltage for the ADG3308-1.

  The ADG3308/ADG3308-1 are guaranteed to operate over the 1.15 V to 5.5 V supply voltage range and the extended ?40°C to +85°C temperature range.
低電壓1.15V至5.5V,8通道雙向邏輯電平轉換器adg3308/adg3308-1數據表
