電子發燒友網>電子資料下載>電源技術>2.5V或3.3V輸出時鐘4 LVPECL扇出緩沖器adclk944數據表

2.5V或3.3V輸出時鐘4 LVPECL扇出緩沖器adclk944數據表

2017-10-20 | rar | 0.24 MB | 次下載 | 免費

資料介紹

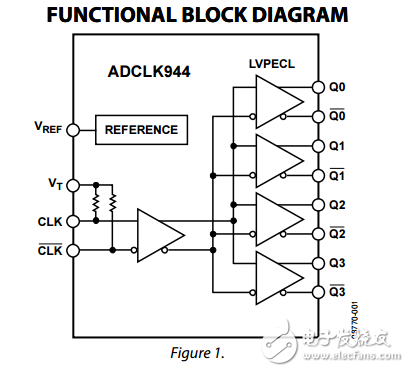

  The ADCLK944 is an ultrafast clock fanout buffer fabricated on the Analog Devices, Inc., proprietary XFCB3 silicon germanium (SiGe) bipolar process. This device is designed for high speed applications requiring low jitter. The device has a differential input equipped with center-tapped, differential, 100 Ω on-chip termination resistors. The input can accept dc-coupled LVPECL, CML, 3.3 V CMOS (single-ended), and ac-coupled 1.8 V CMOS, LVDS, and LVPECL inputs. A VREF pin is available for biasing ac-coupled inputs. The ADCLK944 features four full-swing emitter-coupled logic (ECL) output drivers. For LVPECL (positive ECL) operation, bias VCC to the positive supply and VEE to ground. For ECL operation, bias VCC to ground and VEE to the negative supply. The ECL output stages are designed to directly drive 800 mV each side into 50 Ω terminated to VCC ? 2 V for a total differential output swing of 1.6 V. The ADCLK944 is available in a 16-lead LFCSP and is specified for operation over the standard industrial temperature range of ?40°C to +85°C.
2.5V或3.3V輸出時鐘4 LVPECL扇出緩沖器adclk944數據表
