ST公司的VNH5019A-E是全橋馬達驅動器,集成了雙路高邊驅動器和兩個低邊開關,三個芯片封裝在MultiPowerSO-30封裝中,引線框是電絕緣的.汽車級產品,輸出電流3A,3V CMOS兼容輸入,PWM頻率高達20kHz,用于各種汽車應用.本文介紹了VNH5019A主要特性,框圖和 種應用電路,以及馬達驅動評估板STEVAL-VNH5019A主要特性,電路圖和材料清單.

The VHN5019A-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side drivers and two low-side switches. The high-side driver switch is designed using STMicroelectronics’ well known and proven proprietary VIPower? M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuit.

The three dice are assembled in MultiPowerSO-30 package on electrically isolated lead-frames. This package, specifically designed for the harsh automotive environment offers improved thermal performance thanks to exposed die pads. The input signals INA and INB can directly interface to the microcontroller to select the motor direction and the brake condition.

The DIAGA/ENA or DIAGB/ENB, when connected to an external pull-up resistor, enable one leg of the bridge. They also provide a feedback digital diagnostic signal. The CS pin allows to monitor the motor current by delivering a current proportional to its value when CS_DIS pin is driven low or left open. The PWM, up to 20 KHz, lets us to control the speed of the motor in all possible conditions. In all cases, a low-level state on the PWM pin turns-off both the LSA and LSB switches. When PWM rises to a high-level, LSA or LSB turn-on again depending on the input pin state.Output current limitation and thermal shutdown protects the concerned high-side in short to ground condition.

The short to battery condition is revealed by the overload detector or by thermal shutdown that latches off the relevant low-side. Active VCC pin voltage clamp protects the device against low energy spikes in all configurations for the motor.

CP pin provides the necessary gate drive for an external n-channel PowerMOS used for reverse polarity protection.

VNH5019A主要特性:

■ ECOPACK?: lead free and RoHS compliant
■ Automotive Grade: compliance with AEC guidelines
■ Output current: 30 A
■ 3 V CMOS compatible inputs
■ Undervoltage and overvoltage shutdown
■ High-side and low-side thermal shutdown
■ Cross-conduction protection
■ Current limitation
■ Very low standby power consumption
■ PWM operation up to 20 khz
■ Protection against:
– Loss of ground and loss of VCC
■ Current sense output proportional to motor current
■ Charge pump output for reverse polarity protection
■ Output protected against short to ground and short to VCC

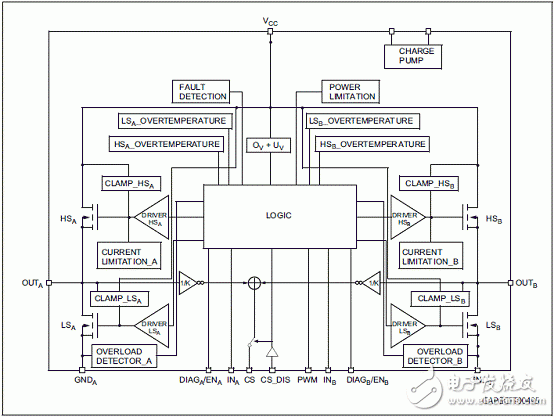

圖1. VHN5019A框圖

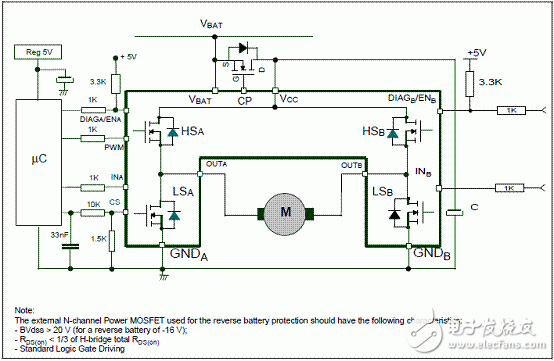

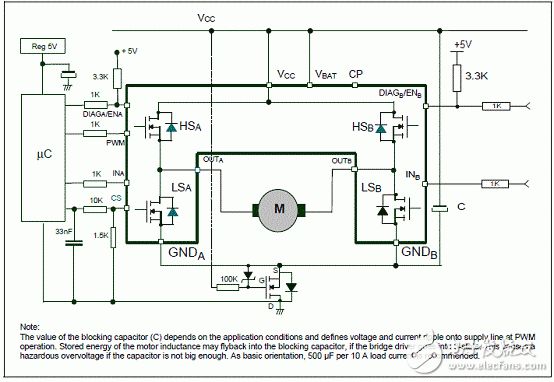

圖2. VHN5019A帶電池反向保護的DC-20kHz PWM應用電路(選擇A)

圖3. VHN5019A帶電池反向保護的DC-20kHz PWM應用電路(選擇B)

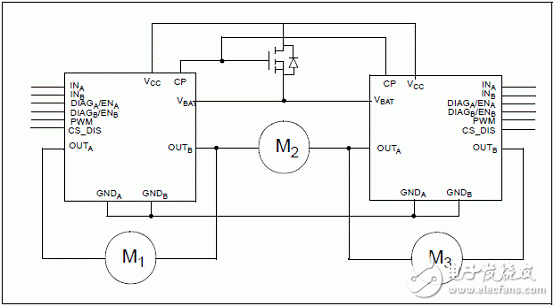

圖4. VHN5019A多個馬達驅動配置圖

馬達驅動評估板STEVAL-VNH5019A

STEVAL-VNH5019A offers dedicated power stage and controls suitable for electric DC motor driving. This evaluation board comes pre-assembled with VNH5019A H-bridge belonging to the VNH Motor Driver series based on VIPower?proprietary technology. Typical applications are Windows Lift, Sliding Door, Seat regulation.

This Evaluation Board consists of a motherboard (STM8 Universal Board) and a daughterboard.

The motherboard, based on STM8 microcontroller, provides the logic section for monitoring and driving the VNH5019A assembled in the daughterboard.

With the aim to make simpler the board usage and settings, ST provides a dedicated and user-friendly software with a Graphic User Interface (GUI). This enables the user to set VNH5019A parameters (PWM, Motor direction…) and at the same time it shows real time device diagnostic information like current output evolution, battery voltage monitoring, board temperature and much more.

馬達驅動評估板STEVAL-VNH5019A主要特性:

Handling up to 30 A of maximum motor current output
Undervoltage and overvoltage shutdown
Device thermal protection
Cross-conduction protection
Very low standby power consumption
Programmable PWM operation (up to 20 kHz)
Protection against loss of ground and loss of VCC
Motor current monitoring (thanks to VNH5019A current sense output)
On-board charge pump output for reverse polarity protection
Device output protected against short to ground and short to VCC
Graphic User Interface (GUI)

圖5. 馬達驅動評估板STEVAL-VNH5019A外形圖

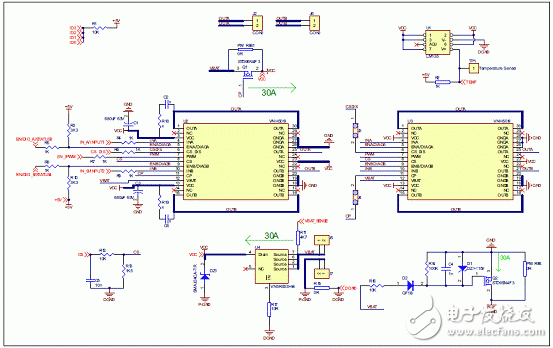

圖5. STEVAL-VNH5019A子板電路圖(1)

圖6. STEVAL-VNH5019A子板電路圖(2)
?

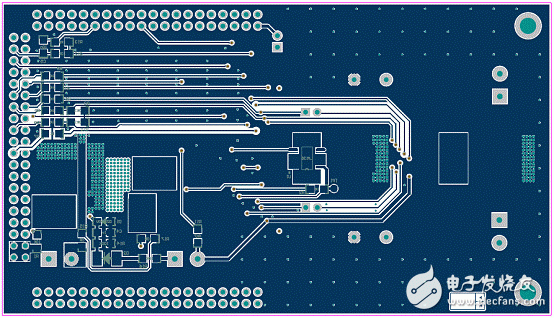

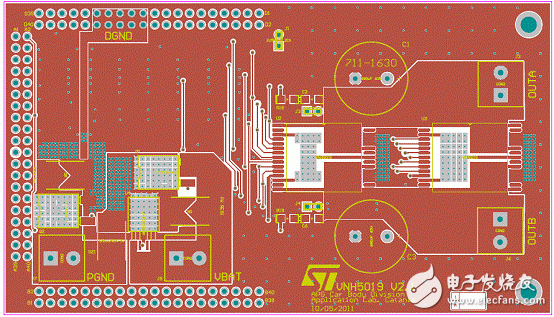

圖7. STEVAL-VNH5019A子板PCB設計圖:頂層

圖8. STEVAL-VNH5019A子板PCB設計圖:底層

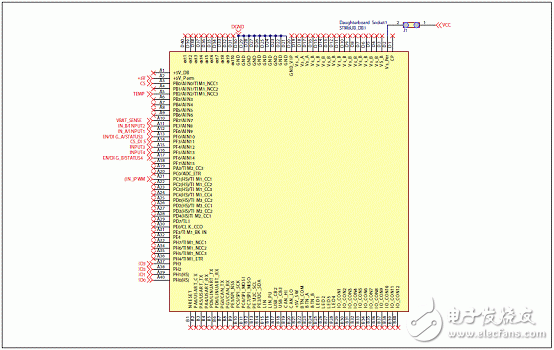

圖9. STEVAL-VNH5019A STM8主板電路圖:I/O和本體應用

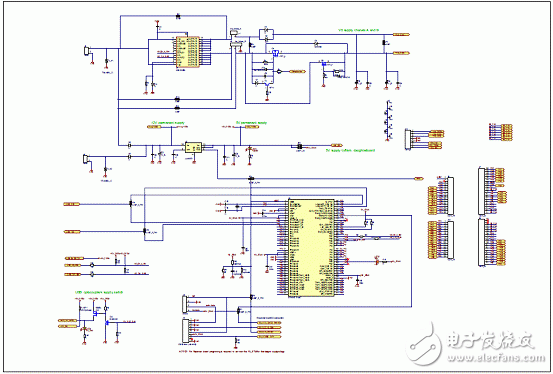

圖10. STEVAL-VNH5019A STM8主板電路圖:STM8和電源

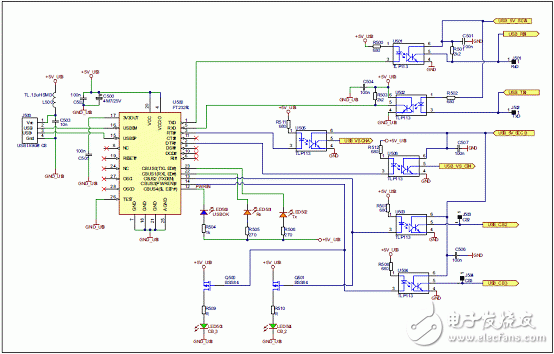

圖11. STEVAL-VNH5019A STM8主板電路圖:USB接口

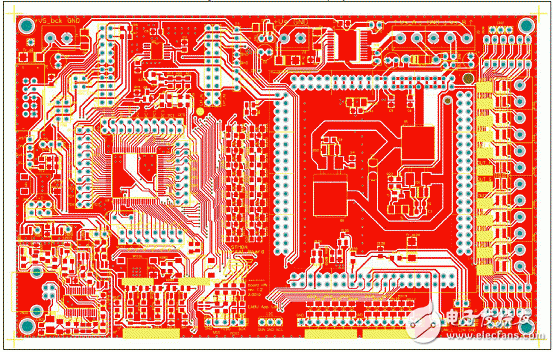

圖12. STEVAL-VNH5019A STM8主板頂層PCB設計圖

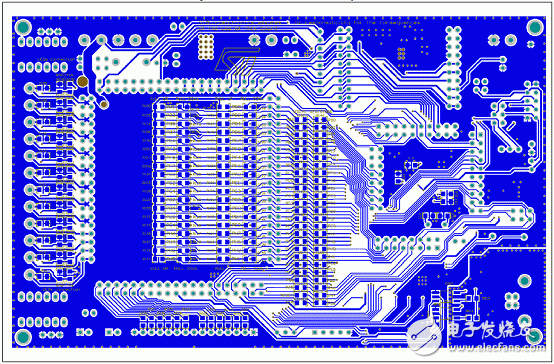

圖13. STEVAL-VNH5019A STM8主板底層PCB設計圖
