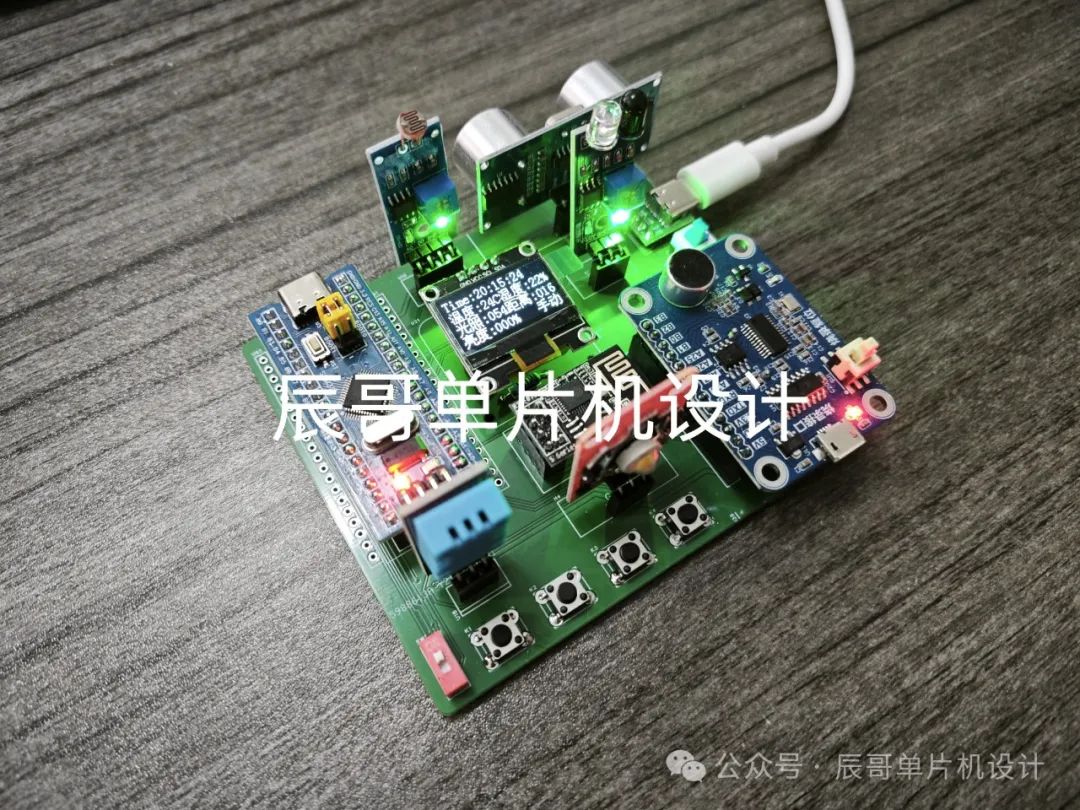

項目成品圖片：

01

—

項目簡介

1.功能詳解

STM32智能語音臺燈(機智云)

功能如下：

STM32F103C8T6單片機作為主控單元

按鍵切換模式，支持自動/手動兩種模式

光敏電阻采集光照強度，超聲波傳感器采集坐姿距離，所有參數顯示在OLED上

智能模式：自動識別有人開燈，并根據環境光強度控制燈的亮度

按鍵模式：按鍵手動調節燈亮度

語音模式：通過語音識別控制臺燈調光與模式切換

坐姿報警：超聲波距離報警

機智云APP：通過APP可查看數據，以及控制下發

2.材料清單

STM32F103C8T6單片機

OLED 屏幕

DHT11溫濕度傳感器

光電紅外傳感器

光敏傳感器

SNR8016語音模塊

HC-SR04超聲波傳感器

ESP8266模塊（WIFI）

有源蜂鳴器

大功率LED燈模塊

02

—

原理圖設計

03

—

PCB硬件設計

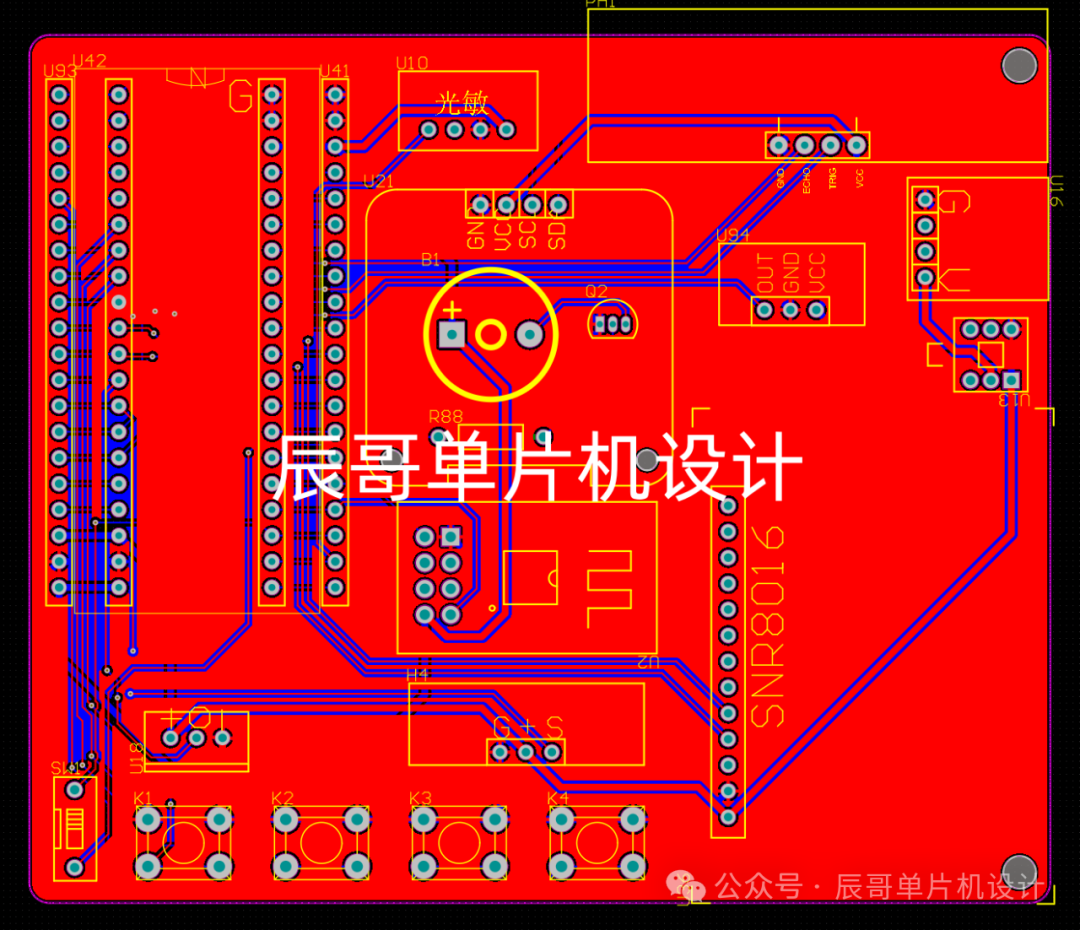

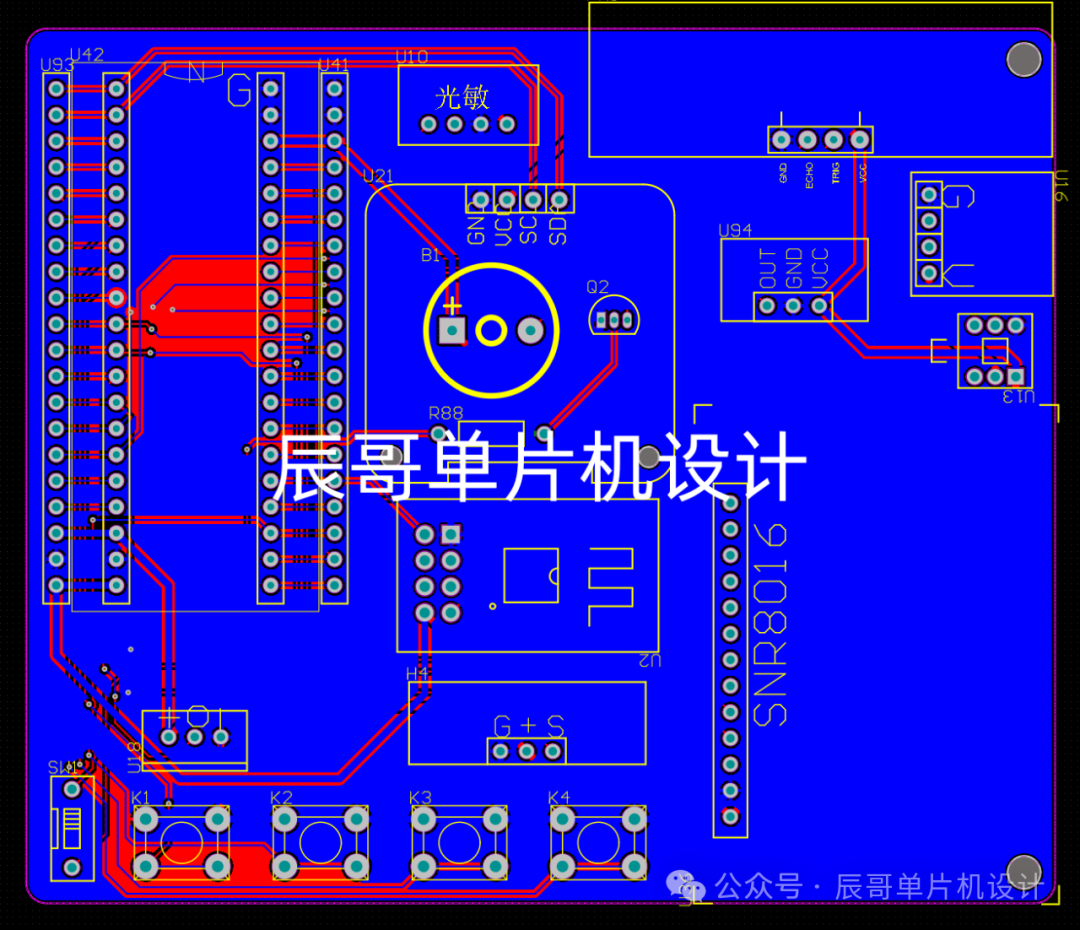

PCB圖

04

—

程序設計

#include"stm32f10x.h" // Device header#include"adcx.h"#include"ldr.h"#include"oled.h"#include"dht11.h"#include"pwm.h"#include"led.h"#include"key.h"#include"tim2.h" #include"tim3.h" #include"hc_sr501.h"#include"hc_sr04.h"#include"sensormodules.h"#include"usart.h"#include"gizwits_product.h"#include"myrtc.h"#include"flash.h"#include"iwdg.h"#include"usart3.h"
#defineKEY_Long111
#defineKEY_11#defineKEY_22#defineKEY_33#defineKEY_44
#defineFLASH_START_ADDR0x0801f000//寫入的起始地址
uint8_thc501;//存儲人體信號uint8_tsystemModel =0;//存儲系統當前模式
uint8_thour,minute,second;//時 分 秒uint8_tmenu =1;//顯示菜單變量


SensorModules sensorData;//聲明傳感器數據結構體變量SensorThresholdValue Sensorthreshold;//聲明傳感器閾值結構體變量
enum{display_page =1,settingsPage,timeSettingsPage
}MenuPages;
/** * @brief 顯示主頁面固定內容 * @param 無 * @retval 無 */voidOLED_Menu(void){//顯示“Time：”O(jiān)LED_ShowString(1,1,"Time");OLED_ShowChar(1,5,':');
//顯示“溫度：”O(jiān)LED_ShowChinese(2,1,0);OLED_ShowChinese(2,2,1);OLED_ShowChar(2,5,':');//顯示“濕度：”O(jiān)LED_ShowChinese(2,5,2);OLED_ShowChinese(2,6,1);OLED_ShowChar(2,13,':');
//顯示“光強：”O(jiān)LED_ShowChinese(3,1,4);OLED_ShowChinese(3,2,5);OLED_ShowChar(3,5,':');//顯示“距離：”O(jiān)LED_ShowChinese(3,5,17);OLED_ShowChinese(3,6,18);OLED_ShowChar(3,13,':');
//顯示“亮度：”O(jiān)LED_ShowChinese(4,1,6);OLED_ShowChinese(4,2,1);OLED_ShowChar(4,5,':');}
/** * @brief 顯示主頁面的傳感器數據等信息 * @param 無 * @retval 無 */voidOLED_Menu_SensorData(void){//顯示時間數據OLED_ShowNum(1,6,MyRTC_Time[3],2);OLED_ShowChar(1,8,':');OLED_ShowNum(1,9,MyRTC_Time[4],2);OLED_ShowChar(1,11,':');OLED_ShowNum(1,12,MyRTC_Time[5],2);
//顯示溫度數據OLED_ShowNum(2,6, sensorData.temp,2);OLED_ShowChar(2,8,'C');
//顯示濕度數據OLED_ShowNum(2,14, sensorData.humi,2);OLED_ShowChar(2,16,'%');
//顯示光強數據OLED_ShowNum(3,6, sensorData.lux,3);
//顯示距離數據OLED_ShowNum(3,14, sensorData.distance,3);
//顯示亮度等級OLED_ShowNum(4,6, ledDutyRatio,3);OLED_ShowChar(4,9,'%');
//顯示是否有人if(sensorData.people){OLED_ShowChinese(1,8,19);}else{OLED_ShowString(1,15," ");}
//顯示系統當前模式 手動模式 or 自動模式if(systemModel){//顯示“自動”O(jiān)LED_ShowChinese(4,7,9);OLED_ShowChinese(4,8,10);}else{//顯示“手動”O(jiān)LED_ShowChinese(4,7,11);OLED_ShowChinese(4,8,12);}}
/** * @brief 顯示系統設置界面 * @param 無 * @retval 無 */voidOLED_SetInterfacevoid(void){//顯示“系統設置界面”O(jiān)LED_ShowChinese(1,2,20);OLED_ShowChinese(1,3,21);OLED_ShowChinese(1,4,22);OLED_ShowChinese(1,5,23);OLED_ShowChinese(1,6,24);OLED_ShowChinese(1,7,25);
//顯示“系統時間”O(jiān)LED_ShowChinese(2,2,20);OLED_ShowChinese(2,3,21);OLED_ShowChinese(2,4,28);OLED_ShowChinese(2,5,29);OLED_ShowChar(2,11,':');OLED_ShowString(2,13,"xxx");
//顯示“光照閾值”O(jiān)LED_ShowChinese(3,2,4);OLED_ShowChinese(3,3,5);OLED_ShowChinese(3,4,26);OLED_ShowChinese(3,5,27);OLED_ShowChar(3,11,':');
//顯示”距離閾值“OLED_ShowChinese(4,2,17);OLED_ShowChinese(4,3,18);OLED_ShowChinese(4,4,26);OLED_ShowChinese(4,5,27);OLED_ShowChar(4,11,':');
//顯示光照閾值數值OLED_ShowNum(3,13, Sensorthreshold.Illumination_threshold,3);
//顯示距離閾值數值OLED_ShowNum(4,14, Sensorthreshold.Distance_threshold,2);}
/** * @brief 記錄閾值界面下按KEY1的次數 * @param 無 * @retval 返回次數 */uint8_tSetSelection(void){staticuint8_tcount =1;if(KeyNum == KEY_1){KeyNum =0;count++;if(count >=4){count =1;}}returncount;}
/** * @brief 顯示閾值界面的選擇符號 * @param num 為顯示的位置 * @retval 無 */voidOLED_Option(uint8_tnum){switch(num){case1:OLED_ShowChar(1,1,' ');OLED_ShowChar(2,1,'>');OLED_ShowChar(3,1,' ');OLED_ShowChar(4,1,' ');break;case2:OLED_ShowChar(1,1,' ');OLED_ShowChar(2,1,' ');OLED_ShowChar(3,1,'>');OLED_ShowChar(4,1,' ');break;case3:OLED_ShowChar(1,1,' ');OLED_ShowChar(2,1,' ');OLED_ShowChar(3,1,' ');OLED_ShowChar(4,1,'>');break;default:break;}}
/** * @brief 顯示時間調節界面的選擇符號 * @param num 為顯示的位置 * @retval 無 */voidOLED_Time_Option(u8 num){switch(num){case1:
OLED_ShowChar(2,6,'v');OLED_ShowChar(2,9,' ');OLED_ShowChar(2,12,' ');break;case2:OLED_ShowChar(2,6,' ');OLED_ShowChar(2,9,'v');OLED_ShowChar(2,12,' ');break;case3:OLED_ShowChar(2,6,' ');OLED_ShowChar(2,9,' ');OLED_ShowChar(2,12,'v');break;default:break;}}
/** * @brief 顯示時間調節界面的內容 * @param 無 * @retval 無 */voidOLED_ThresholdTime(void){//系統時間：OLED_ShowChinese(1,3,20);OLED_ShowChinese(1,4,21);OLED_ShowChinese(1,5,28);OLED_ShowChinese(1,6,29);OLED_ShowChar(1,13,':');
OLED_ShowNum(3,5,hour,2);OLED_ShowChar(3,7,':');OLED_ShowNum(3,8,minute,2);OLED_ShowChar(3,10,':');OLED_ShowNum(3,11,second,2);}
/** * @brief 對閾值界面的傳感器閾值進行修改 * @param num 為當前用戶需要更改的傳感器閾值位置 * @retval 無 */voidThresholdModification(uint8_tnum){switch(num){case1:if(KeyNum == KEY_3){KeyNum =0;OLED_Clear();menu = timeSettingsPage;
hour = MyRTC_Time[3];minute = MyRTC_Time[4];second = MyRTC_Time[5];}elseif(KeyNum == KEY_4){KeyNum =0;OLED_Clear();menu = timeSettingsPage;
hour = MyRTC_Time[3];minute = MyRTC_Time[4];second = MyRTC_Time[5];}break;
case2:if(KeyNum == KEY_3){KeyNum =0;Sensorthreshold.Illumination_threshold +=10;if(Sensorthreshold.Illumination_threshold >999){Sensorthreshold.Illumination_threshold =1;}}elseif(KeyNum == KEY_4){KeyNum =0;Sensorthreshold.Illumination_threshold -=10;if(Sensorthreshold.Illumination_threshold 99){Sensorthreshold.Distance_threshold =1;}}elseif(KeyNum == KEY_4){KeyNum =0;Sensorthreshold.Distance_threshold--;if(Sensorthreshold.Distance_threshold /** * @brief 對系統時間進行修改 * @param num 為當前用戶需要更改的時分秒位置 * @retval 無 */voidTimeModification(uint8_tnum){switch(num){case1:if(KeyNum == KEY_3){KeyNum =0;hour++;if(hour >24){hour =0;}}elseif(KeyNum == KEY_4){KeyNum =0;hour --;if(hour >24){hour =24;}}break;
case2:if(KeyNum == KEY_3){KeyNum =0;minute++;if(minute >60){minute =0;}}elseif(KeyNum == KEY_4){KeyNum =0;minute --;if(minute >60){minute =60;}}break;case3:if(KeyNum == KEY_3){KeyNum =0;second++;if(second >60){second =0;}}elseif(KeyNum == KEY_4){KeyNum =0;second --;if(second >60){second =60;}}break;default:break;}}
/** * @brief 獲取語音模塊數據 * @param 無 * @retval 無 */voidAsrpro(void){if(Usart3_RxFlag ==1){Usart3_RxFlag =0;switch(Usart3_RxPacket[3]){/*控制開關燈*/case1:if(!systemModel){if(Usart3_RxPacket[4]){ledDutyRatio =100;TIM_SetCompare1(TIM1, ledDutyRatio);}else{ledDutyRatio =0;TIM_SetCompare1(TIM1, ledDutyRatio);}}break;
/*控制燈暗一點或亮一點*/case2:if(!systemModel){if(Usart3_RxPacket[4]){ledDutyRatio +=25;if(ledDutyRatio >100){ledDutyRatio =100;}TIM_SetCompare1(TIM1, ledDutyRatio);}else{ledDutyRatio -=25;if(ledDutyRatio >100){ledDutyRatio =0;}TIM_SetCompare1(TIM1, ledDutyRatio);}}break;
/*控制燈亮度百分比調節*/case3:if(!systemModel){switch(Usart3_RxPacket[4]){case0:ledDutyRatio =0;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case1:ledDutyRatio =10;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case2:ledDutyRatio =20;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case3:ledDutyRatio =30;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case4:ledDutyRatio =40;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case5:ledDutyRatio =50;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case6:ledDutyRatio =60;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case7:ledDutyRatio =70;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case8:ledDutyRatio =80;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case9:ledDutyRatio =90;TIM_SetCompare1(TIM1, ledDutyRatio);break;
case16:ledDutyRatio =100;TIM_SetCompare1(TIM1, ledDutyRatio);break;
default:break;}}break;
/*控制系統模式*/case4:if(Usart3_RxPacket[4]){systemModel =1;ledDutyRatio =0;TIM_SetCompare1(TIM1, ledDutyRatio);}else{systemModel =0;ledDutyRatio =0;TIM_SetCompare1(TIM1, ledDutyRatio);}break;
default:break;}}}
/** * @brief 獲取傳感器的數據 * @param 無 * @retval 無 */voidsensorScan(void){DHT11_Read_Data(&sensorData.humi, &sensorData.temp);HC_SR04_Deboanle(&sensorData.distance);LDR_LuxData(&sensorData.lux);HC_SR501_Input(&sensorData.people);}

intmain(void){ADCX_Init();PWM_Init(100-1,720-1);Timer2_Init(9,14398);Uart2_Init(9600);Uart1_Init(115200);IWDG_Init();//初始化看門狗Uart3_Init();
LDR_Init();OLED_Init();DHT11_Init();LED_Init();Key_Init();HC_SR501_Init();HC_SR04_Init();Buzzer_Init();MyRTC_Init();
Sensorthreshold.Illumination_threshold =FLASH_R(FLASH_START_ADDR);//從指定頁的地址讀FLASHSensorthreshold.Distance_threshold =FLASH_R(FLASH_START_ADDR+2);//從指定頁的地址讀FLASH

GENERAL_TIM_Init();userInit();//完成機智云初始賦值gizwitsInit();//開辟一個環形緩沖區while(1){do{currentDataPoint.valueIllumination_threshold = Sensorthreshold.Illumination_threshold;currentDataPoint.valueDistance_threshold = Sensorthreshold.Distance_threshold;}while(0);
IWDG_ReloadCounter();//重新加載計數值 喂狗sensorScan();//獲取傳感器數據Asrpro();//執行語音指令
switch(menu){casedisplay_page:
MyRTC_ReadTime();//調用此函數后，RTC硬件電路里時間值將刷新到全局?jǐn)?shù)組OLED_Menu_SensorData();//顯示主頁面?zhèn)鞲衅鲾?shù)據、系統模式等內容OLED_Menu();//顯示主頁面的固定內容if(!systemModel){LED_PWM_KEY();//按鍵控制LED的PWM}
//切換系統模式if(KeyNum == KEY_1){KeyNum =0;systemModel = ~systemModel;if(systemModel){currentDataPoint.valueModel =1;ledDutyRatio =0;TIM_SetCompare1(TIM1, ledDutyRatio);}else{currentDataPoint.valueModel =0;ledDutyRatio =0;TIM_SetCompare1(TIM1, ledDutyRatio);}}
//判斷是否進入閾值設置界面if(KeyNum == KEY_Long1){KeyNum =0;OLED_Clear();//清屏menu = settingsPage;//跳轉到閾值設置界面}break;casesettingsPage:OLED_SetInterfacevoid();//顯示閾值設置界面的固定內容OLED_Option(SetSelection());//實現閾值設置頁面的選擇功能ThresholdModification(SetSelection());//實現閾值調節功能
//判斷是否退出閾值設置界面if(KeyNum == KEY_2){KeyNum =0;OLED_Clear();//清屏menu = display_page;//跳轉到主界面
//存儲修改的傳感器閾值至flash內FLASH_W(FLASH_START_ADDR, Sensorthreshold.Illumination_threshold, Sensorthreshold.Distance_threshold);currentDataPoint.valueIllumination_threshold = Sensorthreshold.Illumination_threshold;currentDataPoint.valueDistance_threshold = Sensorthreshold.Distance_threshold;}break;casetimeSettingsPage:OLED_ThresholdTime();//顯示時間設置界面的內容OLED_Time_Option(SetSelection());//實現間設置界面的選擇功能TimeModification(SetSelection());//實現時間調節功能
//判斷是否退出時間設置界面if(KeyNum == KEY_2){KeyNum =0;//將更改的數據賦值回RTC數組中MyRTC_Time[3] = hour;MyRTC_Time[4] = minute;MyRTC_Time[5] = second;MyRTC_SetTime();//調用此函數后，全局?jǐn)?shù)組里時間值將刷新到RTC硬件電路
OLED_Clear();//清屏menu = settingsPage;//回到閾值設置界面}break;}//判斷上位機是否更改閾值，如更改則保存至flash中if(valueFlashflag){valueFlashflag =0;//存儲修改的傳感器閾值至flash內FLASH_W(FLASH_START_ADDR, Sensorthreshold.Illumination_threshold, Sensorthreshold.Distance_threshold);}
userHandle();//更新機智云數據點變量存儲的值gizwitsHandle((dataPoint_t *)¤tDataPoint);//數據上傳至機智云}}

05

—

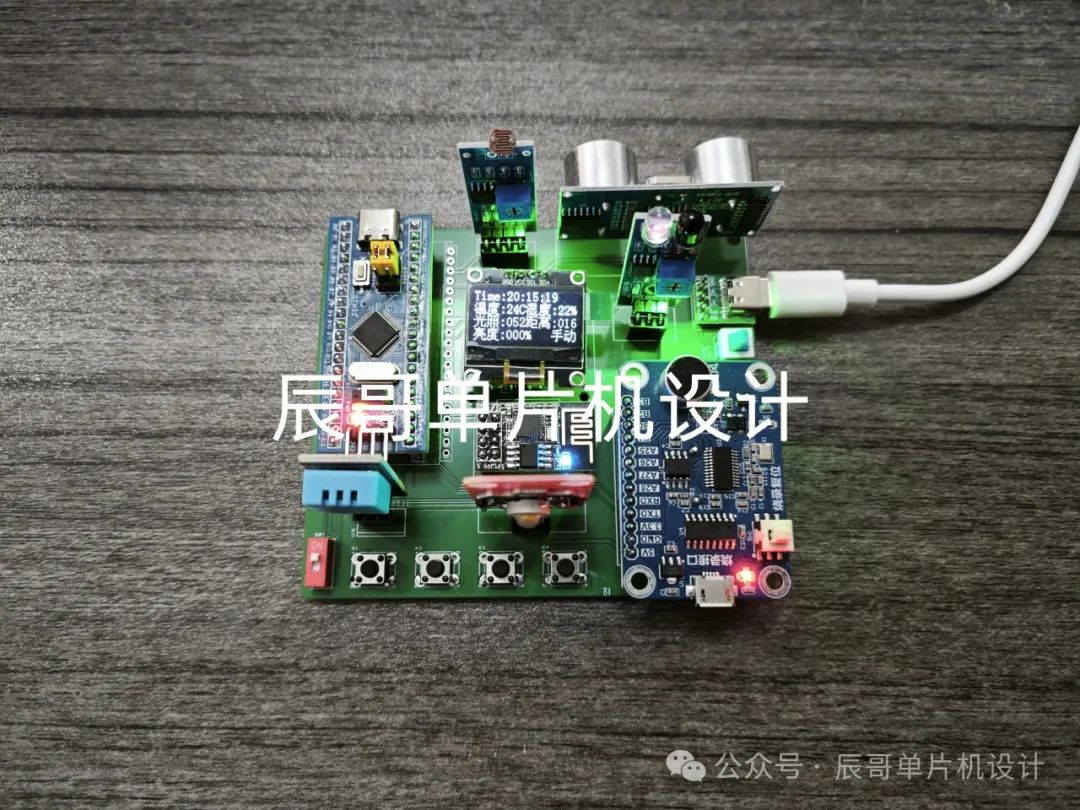

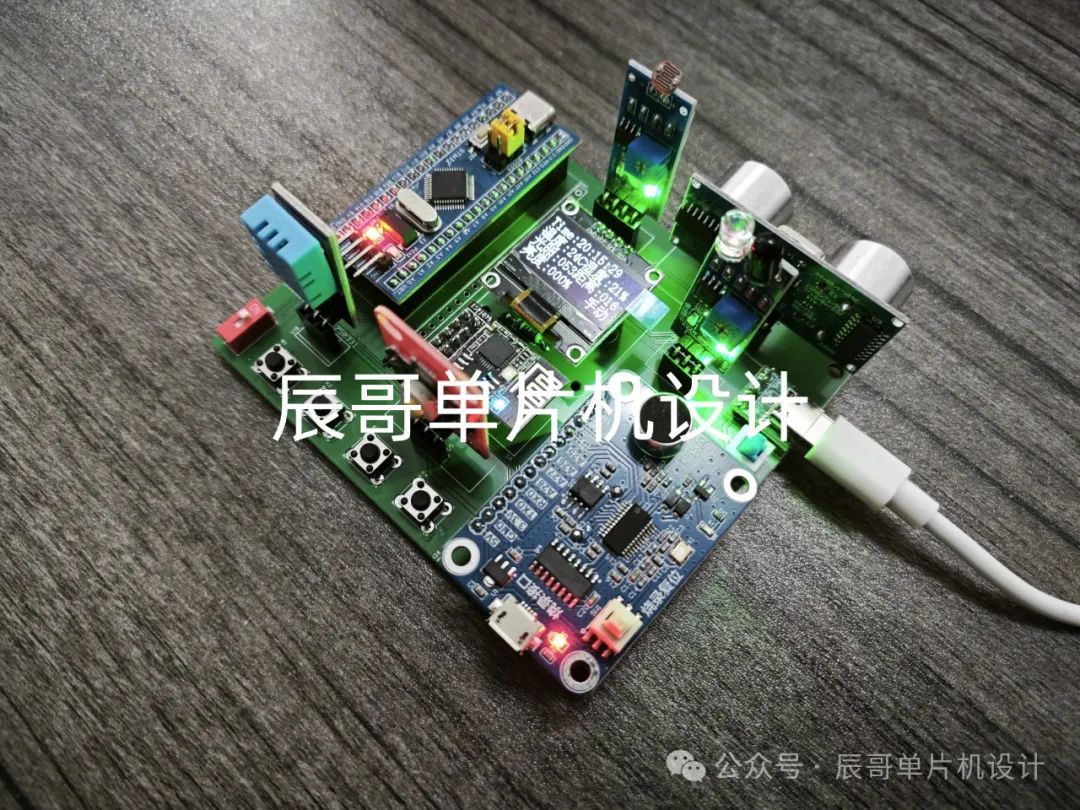

實驗效果
