This evaluation board uses high voltages and currents. Extreme caution should be taken， especially on the primary side， to ensure safety for the user. It is not recommended to remove the primary side protective cover. It is strongly advised to switch off the eval-uation board when not in use. This board is designed for 85 V ac to 132 V ac @ 50 Hz/60 Hz. Do not use with a 220 V ac input. It is recommended to use a current-limited power supply as the input， if available

　　This evaluation board allows the ADM1041 to be quickly evaluated in a switching power supply application. Using the evaluation board and its accompanying software， the ADM1041 can be interfaced to any PC running Windows? 2000， Windows NT， or Windows XP via the computer’s USB port.

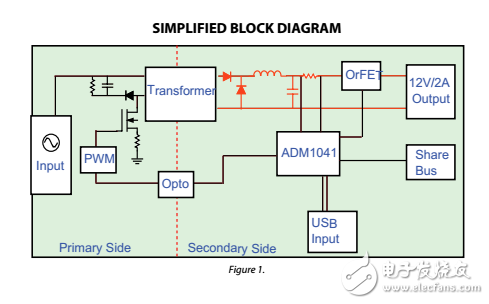

　　The evaluation board allows all the input and output functions of the ADM1041 to be exercised without external components. The software allows control and monitoring of the ADM1041 internal registers. The board is set up for the ADM1041 to act as a switching power supply， outputting a 12 V/2 A dc supply from a 110 V ac or dc input. By connecting two evaluation boards together， you can exercise and evaluate the share bus and current sharing capability for n + 1 redundant power supply systems.
