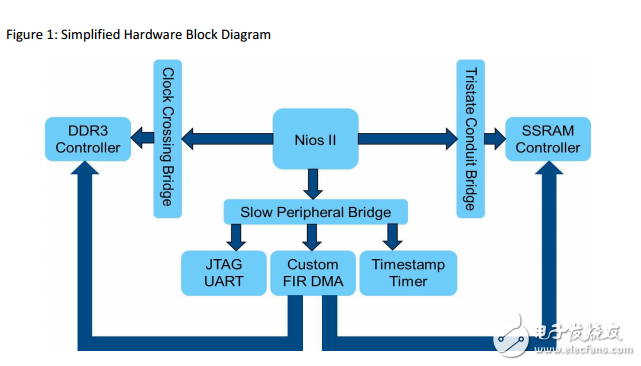

Hardware Specifications This design makes use of several peripherals on the Cyclone V E FPGA Development Kit as well as several IP components. A full list is below： ? Clock source ? Interval timers ? Performance counter unit ? JTAG UART ? Button/LED PIO （implemented in the Qsys design， but not used in this example） ? Custom FIR-DMA （described in the “Theory of Operation” section of this document） ? Avalon-MM Pipeline Bridges ? Avalon-MM Clock Crossing Bridges ? Nios II Classic Processor ? Tri-State Conduit Bridge ? Tri-State Conduit Pin Sharer ? Generic Tri-State Controller （for SSRAM and flash memory， although flash memory is not used in this example） ? Clock Bridges ? DDR3 SDRAM Controller with Uniphy ? Altera PLL ? On-Chip RAM This design was implemented in Quartus II 15.0. A block diagram is below. Note that this block diagram is highly simplified and leaves out several peripherals and intermediate pipelining bridges. It is meant to highlight the most “important” parts of the hardware and how they are connected. A more detailed block diagram of the Custom FIR DMA block is included in the “Theory of Operation” section of this document.

　　Theory of Operation This design example implements a FIR filter with built-in direct memory access on a Cyclone V E FPGA Development Kit. The finite impulse response （FIR） filter is a common algorithm used in digital signal processing （DSP） systems. In this example， a FIR filter has been integrated into a single Qsys component containing Avalon? Memory-Mapped （Avalon-MM） read and write masters. The read master is responsible for supplying the filter with input data （from the SSRAM in this example）， while the write master is responsible for writing the filter response back to memory （the DDR3 SDRAM in this example）。 Since the filter has Avalon mastering capabilities， you do not need to use a separate direct memory access （DMA） engine to accomplish the filter operation. Below is a diagram of the Custom FIR DMA Qsys component.
