評估工具包和參考設計有助于加快智能電網解決方案的發展

?

　　物聯網（物聯網）承諾提供顯著的節省量時，充分應用在智能建筑和智能校園環境。管理能源將提供一個最大的儲蓄環境控制管理，以提供最佳的舒適性居民，同時盡量減少能源使用。工廠和工業復合物也將受益于更強大的和連接的物聯網為基礎的能源管理系統。收集和控制所有的電力供應和消費點將需要更廣泛的能源計量和管理設備推出。

?

　　MCU廠商早已針對能源計量和管理應用，以及現代的MCUs有幾個先進的功能，使他們非常有效的在這些應用。此外，參考設計往往提供完整的系統解決方案，共同的能源測量，控制和集中器應用。本文將探討一些這些參考設計來說明他們如何可以顯著簡化實施您的下一個能源測量和管理設計，加快您的上市時間。

?

　　

?

　　Energy management in the Smart Grid

?

　　The Smart Grid is a new way of thinking and architecting the energy infrastructure. It applies to all aspects of the generation， distribution， and utilization of energy. If all three of these elements are in place and operational， a more intelligent and efficient “Smart Grid” can be constructed. A Smart Grid will optimize energy generation， delivery， and consumption by measuring and predicting the energy needed， and then generating and delivering it efficiently. A key element of the Smart Grid is the sensing， monitoring， and communicating of energy use by the consumer. Once energy use is known and ideally predictable by using big-data analytics， generation and delivery can be better managed. If consumption can be managed based on the availability of generated energy， additional efficiencies can be obtained.

?

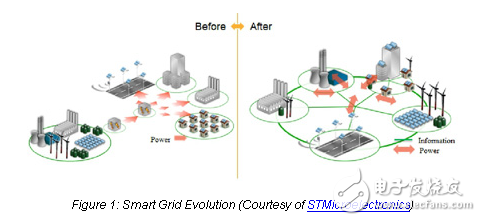

　　Figure 1 illustrates the evolution of the Smart Grid. On the left side， the previous energy system was concentrated on power generation. The Smart Grid utilizes a more distributed approach to power generation， using multiple sources and a communications and sensing network to better manage energy delivery and utilization. Sensors are used throughout the Smart Grid to measure power. This is not only implemented at each use point， but also at each generation and distribution point so real-time decisions can be made that optimize the efficiency of the entire system.

?
