infineon公司的評估板Eval-M5-E1B1245N-SiC是7.5 kWCoolSiC? MOSFET馬達驅動器,包括有三相SiC功率模塊,和裝備了M5 32引腳接口連接器如XMC DriveCard 4400的控制板,具有CoolSiC? MOSFET馬達驅動的特性.評估板Eval-M5-E1B1245N-SiC包括有六塊電源模塊

FS45MR12W1M1_B11和EiceDRIVER? 1200 V絕緣柵驅動器1EDI20H12AH.模塊額定耐壓指標為1200V,開態電阻為 45 mOhm.輸入電壓為340~480 VAC,集成了NTC溫度傳感器,最大馬達輸出功率7.5kW,板上集成了EMI濾波器,在電源和信號部分間絕緣,隔離的Δ∑-ADC電流檢測,熱敏電阻輸出,過流和短路硬件保護,超溫硬件保護,保護時所有六個開關開斷.主要用在馬達控制和驅動,太陽能系統解決方案和不間斷電源(UPS).本文介紹了評估板Eval-M5-E1B1245N-SiC主要特性和優勢,框圖和主要指標,電路圖,材料清單和PCB裝配圖.

Eval-M5-E1B1245N-SiC CoolSiC? MOSFET motor drives evaluation board for 7.5 kW
This complete evaluation board including a 3-phase SiC power module for motor drive applications. In combination with control boards equipped with the M5 32-pin interface connector such as the XMC DriveCard 4400, it features and demonstrates our CoolSiC? MOSFETs in motor drives.

The evaluation board was developed to support customers during their first steps designing applications with the sixpack power module FS45MR12W1M1_B11 and EiceDRIVER? 1200 V isolated gate driver 1EDI20H12AH. The module has a rated blocking voltage of 1200 V at a typical on-state resistance of 45 mOhm. It is optimized for motor drive applications with a very high-frequency switching operation.

評估板Eval-M5-E1B1245N-SiC主要特性:

EasyPACK? 1B 1200 V / 45 mΩ sixpack module with CoolSiC? MOSFET
Lead-free terminal plating; RoHS compliant
Low inductive design
Integrated NTC temperature sensor
The evaluation board characteristics are:
Input voltage 340~480 VAC
Maximum 7.5 kW motor power output
On-board EMI filter
Basic insulation between power and signal part
Isolated current sensing with Δ∑-ADC
Isolated sensing of dc-link voltage by Δ∑-ADC
Thermistor output
Overload and short-circuit hardware protection
Overtemperature hardware protection
All six switches turn off during protection
Rugged gate driver technology with stability against transient and negative voltage
Auxiliary power supply with 5 V
Measurement test points compatible with standard oscilloscope probes
PCB is 259 mm x 204 mm and has four layers of 35 μm copper each

評估板Eval-M5-E1B1245N-SiC主要優勢:
MADK is optimized to GPD / Servo drives with very high fsw
Including the Easy 1B with CoolSiC? MOSFET in sixpack configuration
Equipped with all assembly groups for sensorless field oriented control (FOC)
Overtemperature and overcurrent protection as well as short circuit protection
Diagrams

圖1.評估板Eval-M5-E1B1245N-SiC框圖

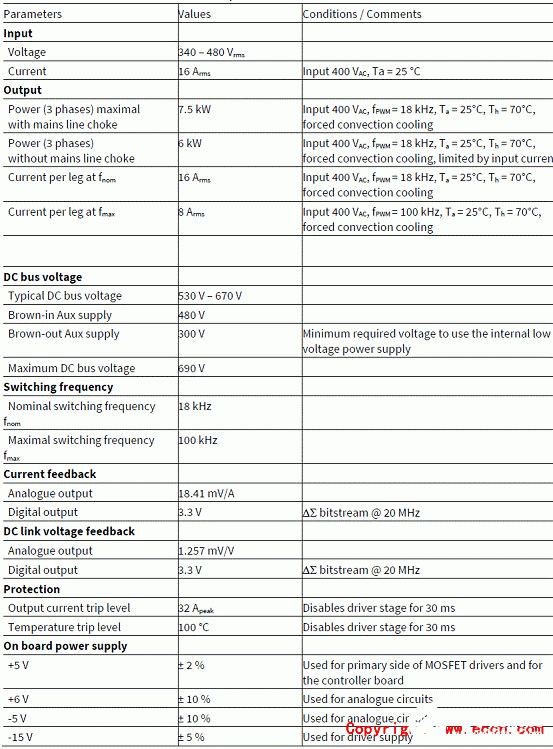

評估板Eval-M5-E1B1245N-SiC主要指標:

評估板Eval-M5-E1B1245N-SiC

This application note provides an overview of the evaluation board Eval-M5-E1B1245N-SiC including its main features, key data, pin assignments and mechanical dimensions.

Eval-M5-E1B1245N-SiC is a complete evaluation board including a 3-phase SiC power module for motor drive applications. In combination with control boards equipped with the M5 32-pin interface connector such as the XMC DriveCard 4400, it features and demonstrates Infineon’s CoolSiC? MOSFETs in motor drives.

The evaluation board Eval-M5-E1B1245N-SiC was developed to support customers during their first steps designing applications with the sixpack power module FS45MR12W1M1_B11. The module has a rated blocking voltage of 1200 V at a typical on-state resistance of 45 mOhm. It is optimized for motor drive applications with a very high-frequency switching operation.

The Eval-M5-E1B1245N-SiC evaluation board is part of the iMOTION? Modular Application Design Kit for motor drives (iMOTION? MADK).

The MADK platform is intended for use at various power stages with different control boards. These boards can easily be interfaced via the iMOTION? MADK-M5 32-pin interface connector to control boards such as the XMC DriveCard 4400 or XMC DriveCard 1300.

This evaluation board is designed as an easy-to-use power stage based on Infineon’s 3-phase power modules. The board is equipped with shunts in the phase output enabling the implementation of sensorless control. It provides a three-phase AC connector, EMI filter, rectifier and a 3-phase output for connecting the motor. The power stage also contains isolated current, voltage and temperature sensing circuits.

The Eval-M5-E1B1245N-SiC evaluation board is available via regular Infineon distribution partners as well as on Infineon’s website. The features of this board are described in the design feature chapter of this document. The remaining paragraphs provide information enabling customers to copy, modify and qualify the design for production according to their own specific requirements.

Environmental conditions were considered in the design of the Eval-M5-E1B1245N-SiC. The design was tested as described in this document, but not qualified in terms of safety requirements, manufacturing and operation over the entire operating temperature range or lifetime. The boards provided by Infineon are subject to functional testing only.

Evaluation boards are not subject to the same procedures as regular products regarding Returned Material Analysis (RMA), Process Change Notification (PCN) and Product Discontinuation (PD). Evaluation boards are intended to be used under laboratory conditions and by trained specialists only.

潛在應用:
Motor control and drives
Solutions for solar energy systems
Uninterruptible power supply

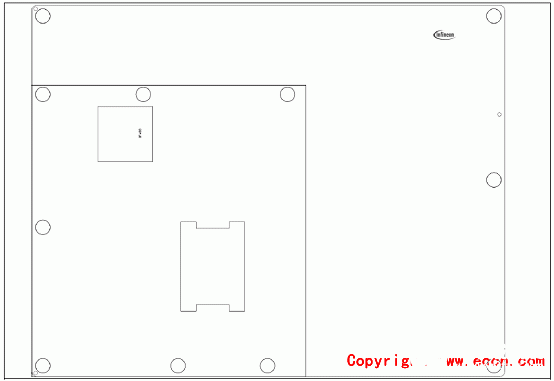

圖2.評估板Eval-M5-E1B1245N-SiC外形圖

圖3.評估板Eval-M5-E1B1245N-SiC正面概述圖

圖4.評估板Eval-M5-E1B1245N-SiC側面圖

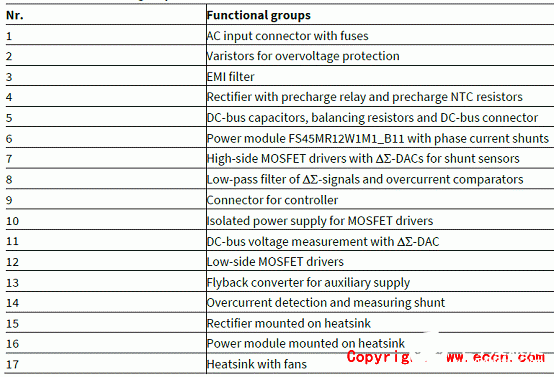

圖3和圖4中數字功能表:

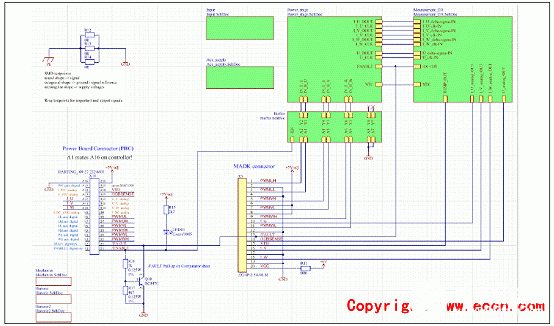

圖5.驅動器板連接器電路圖

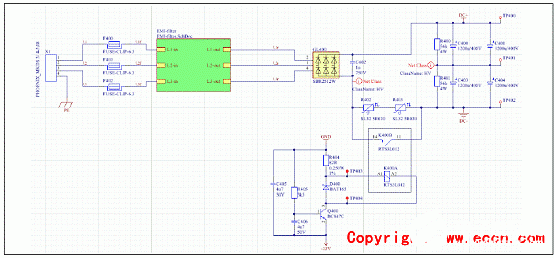

圖6.主輸入和預充電電路

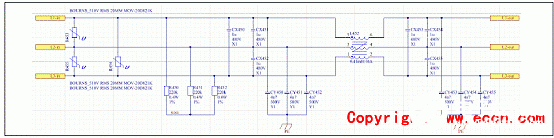

圖7.EMI濾波器電路

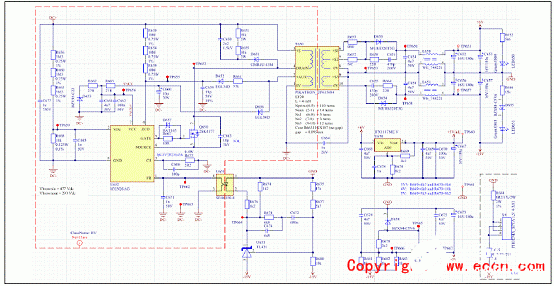

圖8.輔助電源電路

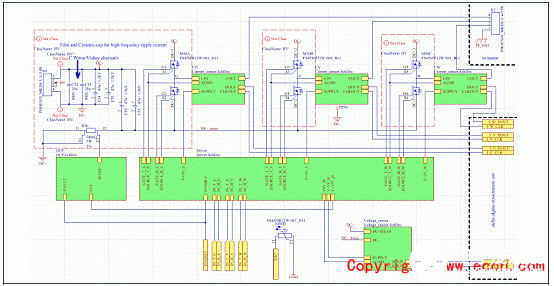

圖9.功率級

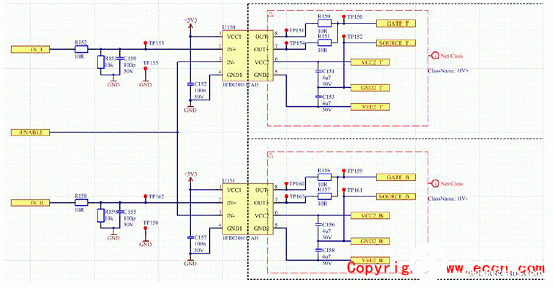

圖10.單相腿驅動器電路

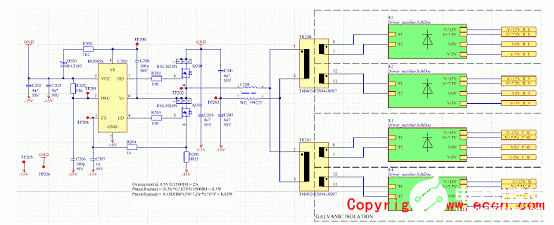

圖11.驅動器電源電路

圖12.驅動器電路整流器電路

圖13.評估板NTC測量電路

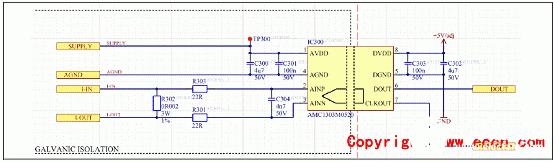

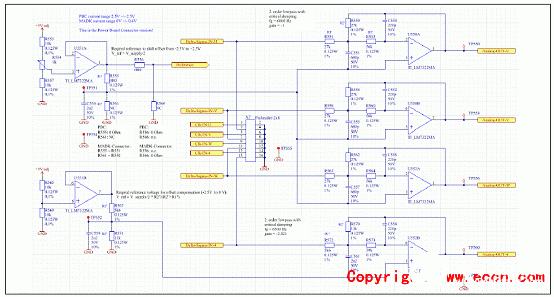

圖14.相位電流測量電路

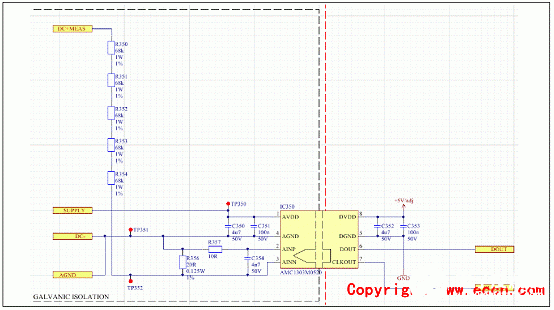

圖15.DC總線電壓測量電路

圖16.數模轉換測量電路

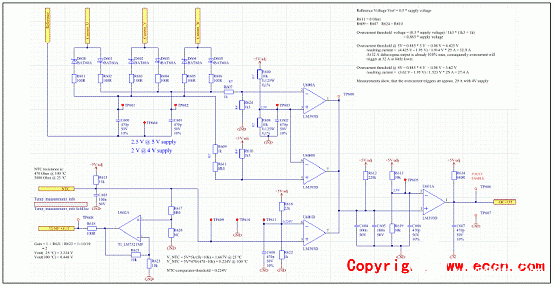

圖17.保護電路和溫度測量電路

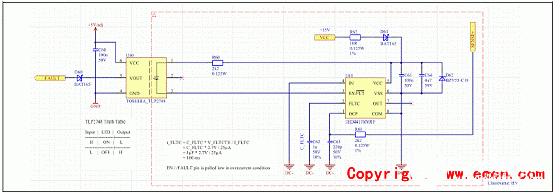

圖18.短路保護電路

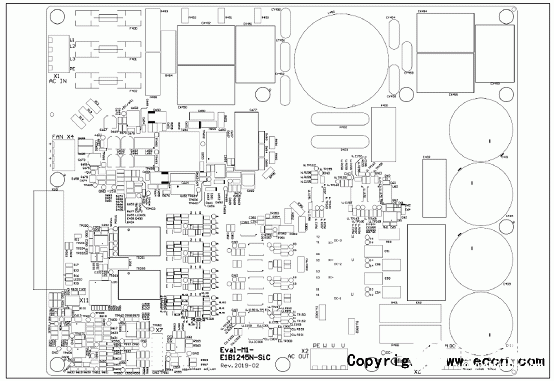

圖19.評估板Eval-M5-E1B1245N-SiC頂層裝配圖

圖20.評估板Eval-M5-E1B1245N-SiC底層裝配圖

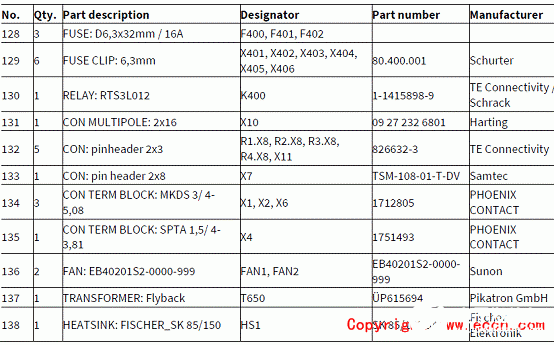

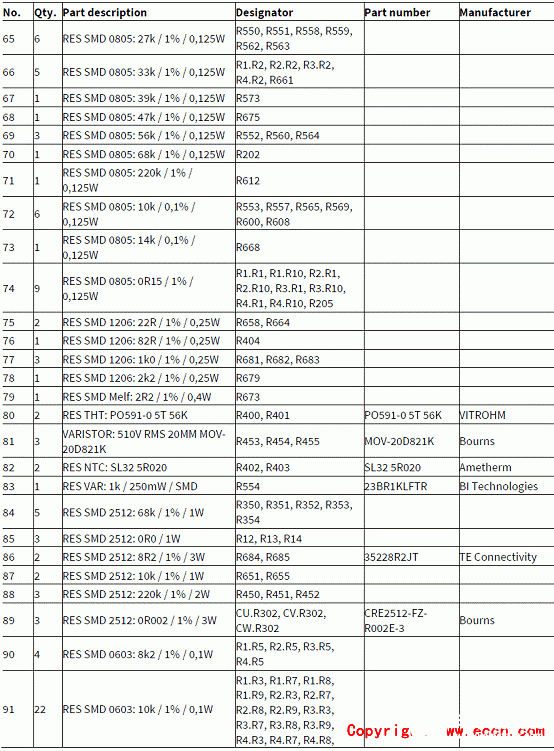

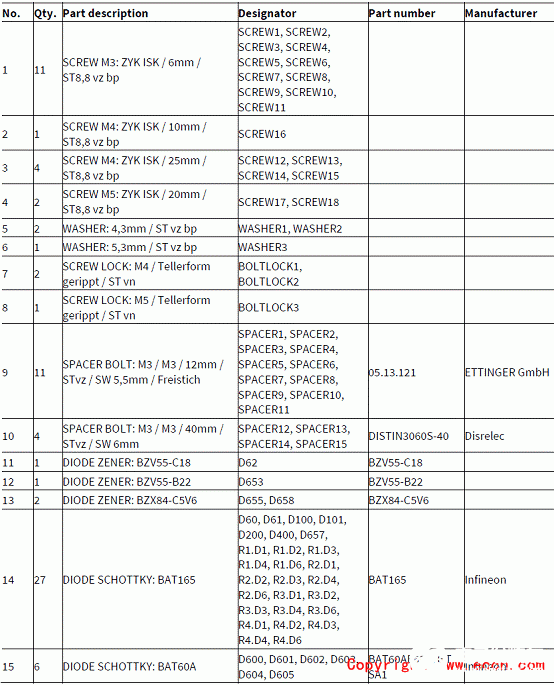

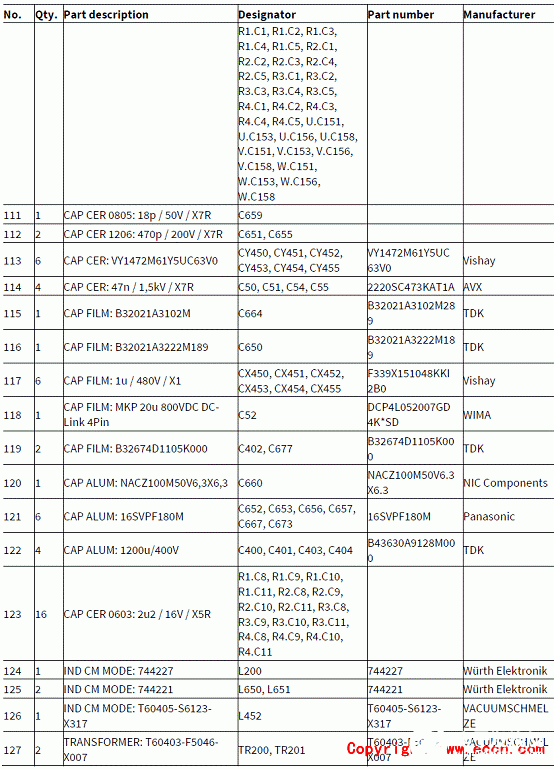

評估板Eval-M5-E1B1245N-SiC材料清單:
